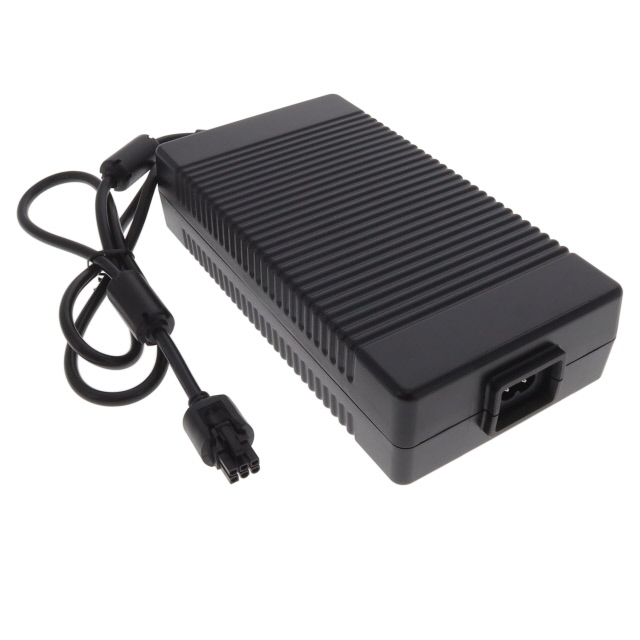

ME240A2451N01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 240W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	ME240A2451N01

Applications	Medical
Approval Agency	CE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	10 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Rectangular, 6 Position
Power (Watts)	240 W
Region Utilized	International
Size / Dimension	1.85 in, 4.25 in, 8.43 in
Size / Dimension	47 mm, 108 mm, 214 mm
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	24 V
Weight	700 g
Weight	1.543 lb

Part	Input Type	Power (Watts)	Input Connector	Approval Agency	No Load Power Consumption [Max]	Region Utilized	Efficiency	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Applications	Form	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Cord Length	Cord Length	Size / Dimension	Size / Dimension	Weight	Weight
SL POWER / Advanced Energy ME240A2451F01	Cord	240 W	IEC 320-C14	CE	150 mW	International	CoC Tier 2 Level VI	24 V	50 °C	-20 C	10 A	Medical	Desktop (Class I)	Rectangular 6 Position	90 VAC	264 VAC	60601-1	8.4 "	47 mm	4.25 in	1.85 in	108 mm	213.4 mm	1 m	39.4 "
SL POWER / Advanced Energy ME240A2451N01	Cord	240 W	IEC 320-C8	CE	150 mW	International	CoC Tier 2 Level VI	24 V	50 °C	-20 C	10 A	Medical	Desktop (Class II)	Rectangular 6 Position	100 VAC	240 VAC								1 m	39.4 "	1.85 in 4.25 in 8.43 in	47 mm 108 mm 214 mm	700 g	1.543 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 154.28

General part information

24V 240 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
