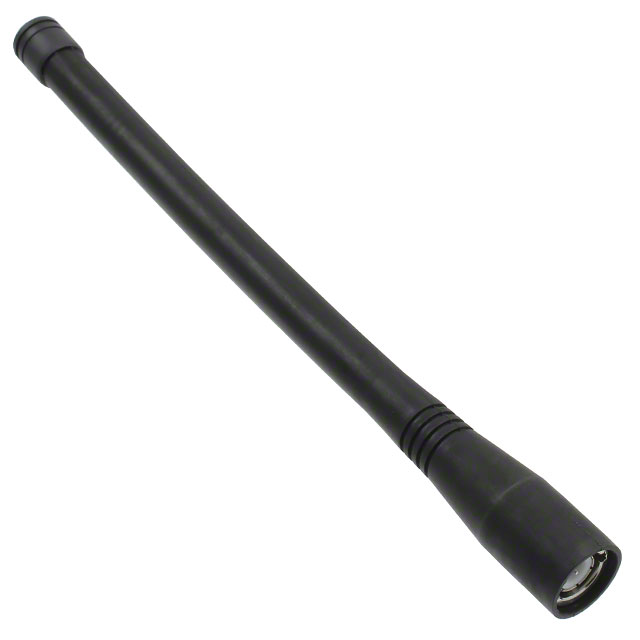

EXB136BNX
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 140MHZ WHIP STR BNX CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EXB136BNX
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 140MHZ WHIP STR BNX CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EXB136BNX |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 140 MHz |
| Frequency Group | VHF |
| Frequency Range [Max] | 144 MHz |
| Frequency Range [Min] | 136 MHz |
| Gain | 0 dBi |
| Height (Max) [Max] | 185.42 mm |
| Height (Max) [Max] | 7.3 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | BNX |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EXB136 Series
RF ANTENNA Whip, Straight BNX Connector Mount
Documents
Technical documentation and resources
