BH010-04-C-0850-0840-0573-G

Active

GCT

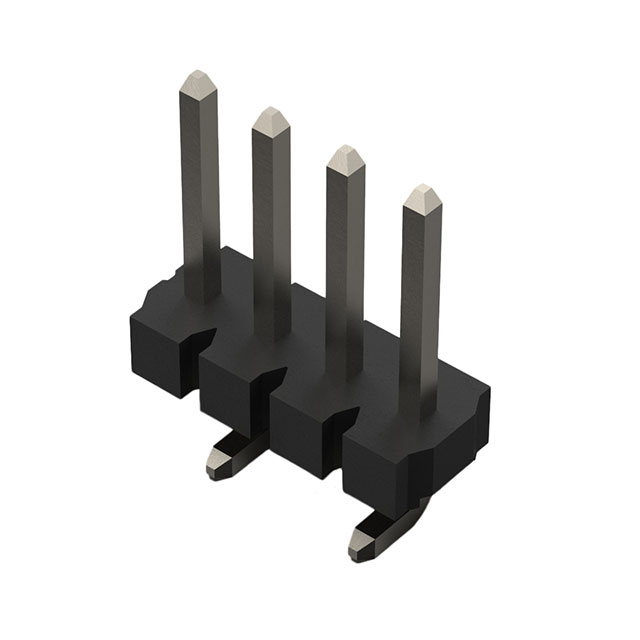

CONN HEADER SMD 4POS 3.96MM

Search across all available documentation for this part.

Active

GCT

CONN HEADER SMD 4POS 3.96MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BH010-04-C-0850-0840-0573-G	BH010 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	0.335 in	0.335 in
Contact Length - Mating	8.51 mm	8.51 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	7.9 A	7.9 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height	0.125 in	0.125 in
Insulation Height	3.18 mm	3.18 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	4	4 - 12
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

CONN HEADER SMD 4POS 3.96MM

Part	Contact Material	Fastening Type	Mounting Type	Contact Type	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Shrouding	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Insulation Height	Insulation Height	Insulation Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Current Rating (Amps)	Contact Shape	Number of Rows	Features
GCT BH010-04-C-0850-0840-0573-G	Brass	Push-Pull	Surface Mount	Male Pin	Black	UL94 V-0	All	Unshrouded	0.335 in	8.51 mm	-40 °C	105 ░C	Header	4	0.125 in	3.18 mm	Liquid Crystal Polymer (LCP)	Tin	0.156 in	3.96 mm	Solder	7.9 A	Square	1	Pick and Place
GCT BH010-12-C-0850-0840-0573-G	Brass	Push-Pull	Surface Mount	Male Pin	Black	UL94 V-0	All	Unshrouded	0.335 in	8.51 mm	-40 °C	105 ░C	Header	12	0.125 in	3.18 mm	Liquid Crystal Polymer (LCP)	Tin	0.156 in	3.96 mm	Solder	7.9 A	Square	1	Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 4 position 0.156" (3.96mm)
