WLC03ENC40PN7AMM50M
ActiveAmphenol Industrial Operations

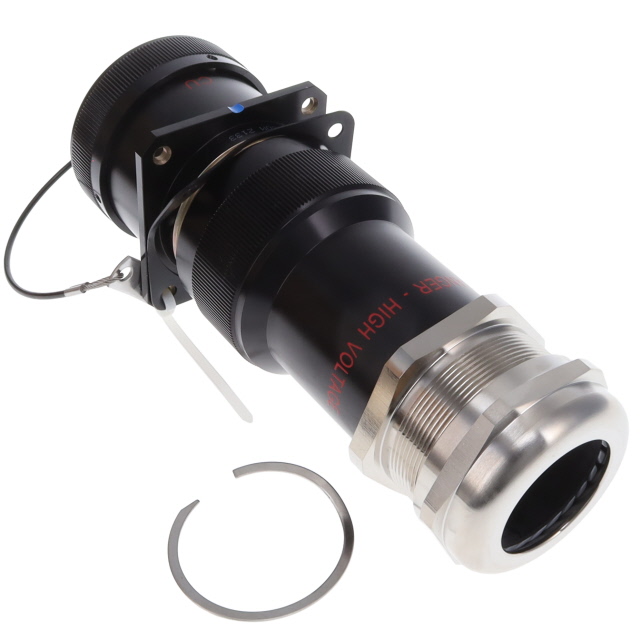

WIND-LOK WALL MOUNT RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
WLC03ENC40PN7AMM50M
ActiveAmphenol Industrial Operations
WIND-LOK WALL MOUNT RECEPTACLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WLC03ENC40PN7AMM50M | WLC03 Series |
|---|---|---|
| Color | - | Brown, Green |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Fastening Type | Reverse Bayonet Lock | Reverse Bayonet Lock |
| Features | Dust Cap | Dust Cap |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Mounting Feature | Flange | Flange |
| Number of Positions | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | N | W, J, N |
| Primary Material | Metal | Metal |
| Shell Finish | Black Anodized | Black Anodized |
| Shell Size - Insert | 40 | 40 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 1000 VDC | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 247.36 | |
WLC03 Series
WIND-LOK WALL MOUNT RECEPTACLE,
| Part | Shielding | Shell Finish | Termination | Shell Size - Insert | Contact Finish - Mating | Connector Type | Features | Mounting Feature | Orientation | Color | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Voltage Rating | Primary Material | Fastening Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations WLC03EBN40PW8MM63M | Shielded | Black Anodized | Crimp | 40 | Silver | Male Pins, Receptacle | Dust Cap | Flange | W | Brown | 125 °C | -40 °C | Environment Resistant | 1000 VDC | Metal | Reverse Bayonet Lock | 1 |
Amphenol Industrial Operations WLC03EGN40PJ5BMM50M | Shielded | Black Anodized | Crimp | 40 | Silver | Male Pins, Receptacle | Dust Cap | Flange | J | Green | 125 °C | -40 °C | Environment Resistant | 1000 VDC | Metal | Reverse Bayonet Lock | 1 |
Amphenol Industrial Operations WLC03ENC40PN7AMM50M | Shielded | Black Anodized | Crimp | 40 | Silver | Male Pins, Receptacle | Dust Cap | Flange | N | 125 °C | -40 °C | Environment Resistant | 1000 VDC | Metal | Reverse Bayonet Lock | 1 |
Description
General part information
WLC03 Series
1 (Power) Position Circular Connector Receptacle, Male Pins Crimp
