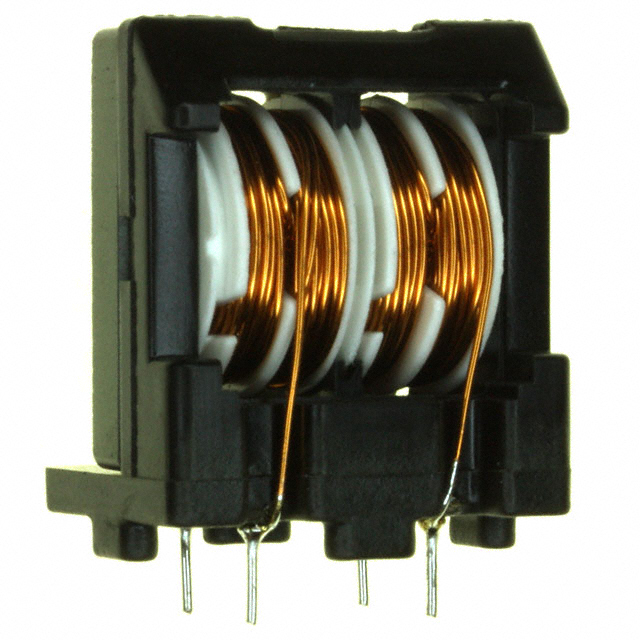

EV28-1.5-02-20M
ActiveTE Connectivity Raychem Cable Protection
SINGLE PHASE EMI FILTER, 250V, 400HZHZ, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EV28-1.5-02-20M
ActiveTE Connectivity Raychem Cable Protection
SINGLE PHASE EMI FILTER, 250V, 400HZHZ, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EV28-1.5-02-20M |
|---|---|
| Current Rating (Max) [Max] | 1.5 A |
| DC Resistance (DCR) (Max) | 282 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 35.7 mm |
| Height (Max) [Max] | 1.406 in |
| Inductance @ Frequency | 20 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 29.2 mm |
| Size / Dimension [x] | 1.15 " |
| Size / Dimension [y] | 0.827 in |
| Size / Dimension [y] | 21 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.77 | |
| 10 | $ 3.10 | |||
| 25 | $ 2.87 | |||
| 50 | $ 2.71 | |||
| 100 | $ 2.55 | |||
| 250 | $ 2.36 | |||
| 500 | $ 2.23 | |||
| 1000 | $ 2.10 | |||
| 2500 | $ 2.05 | |||
Description
General part information
EV28-1 Series
20 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm (Typ)
