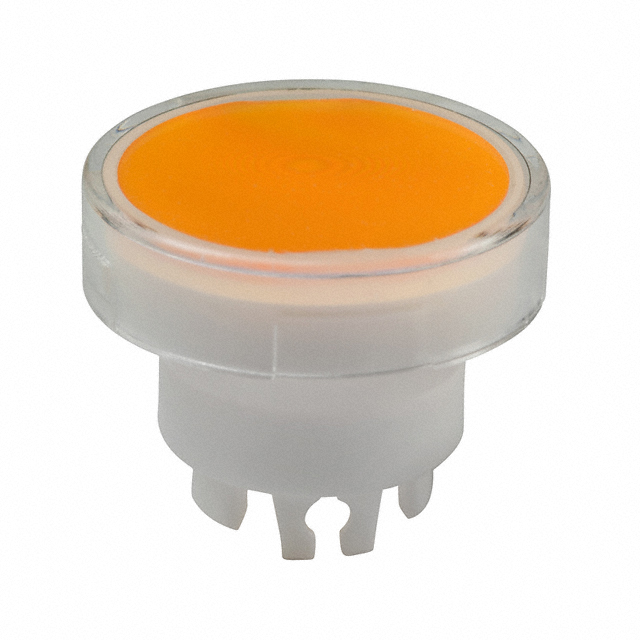

AT3005JD

Active

NKK Switches

CAP PUSHBUTTON ROUND CLR/AMBER

Search across all available documentation for this part.

Active

NKK Switches

CAP PUSHBUTTON ROUND CLR/AMBER

Technical Specifications

Parameters and characteristics for this part

Specification	AT3005JD

Color	Clear, Amber
For Use With/Related Products	YB Series
Illumination	Illuminated
Mounting Type	Snap Fit
Shape	Round
Size [diameter]	15 mm
Size [z]	4 mm
Switch Type	Pushbutton

Part	Shape	Color	Mounting Type	For Use With/Related Products	Switch Type	Size [z]	Size [diameter]	Illumination
NKK Switches AT3005JD	Round	Amber Clear	Snap Fit	YB Series	Pushbutton	4 mm	15 mm	Illuminated
NKK Switches AT3005JF	Round	Clear Green	Snap Fit	YB Series	Pushbutton	4 mm	15 mm	Illuminated
NKK Switches AT3005JE	Round	Clear Yellow	Snap Fit	YB Series	Pushbutton	4 mm	15 mm	Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Round Pushbutton Switch Cap Clear, Amber Snap Fit
