2866161

Active

Phoenix Contact

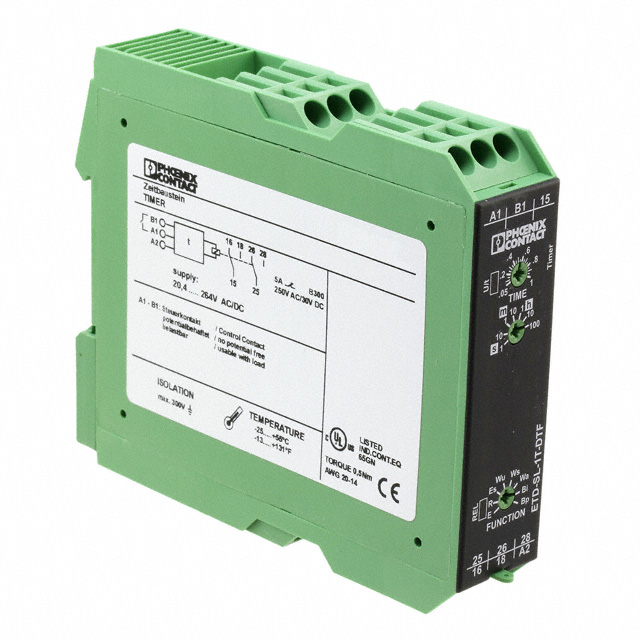

TIME DELAY & TIMING RELAYS ETD-SL-1T-DTF

Search across all available documentation for this part.

Active

Phoenix Contact

TIME DELAY & TIMING RELAYS ETD-SL-1T-DTF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 3A @ 250VAC DIN Rail

Technical documentation and resources

Specification	2866161	28661 Series

Circuit	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 3 A	3 - 250 VAC
Delay Time [Max]	100 Hrs	100 Hrs
Delay Time [Min]	0.05 Sec	0.05 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	24 VAC	24 VAC

Part	Contact Rating @ Voltage	Relay Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Termination Style	Mounting Type	Function	Circuit	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method
Phoenix Contact 2866174	3 A, 250 VAC	Mechanical Relay	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	DIN Rail	Programmable (Multi-Function)	DPDT (2 Form C)	100 Hrs	0.05 Sec	Input Voltage
Phoenix Contact 2866161	3 A, 250 VAC	Mechanical Relay	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	DIN Rail	Programmable (Multi-Function)	DPDT (2 Form C)	100 Hrs	0.05 Sec	Input Voltage
