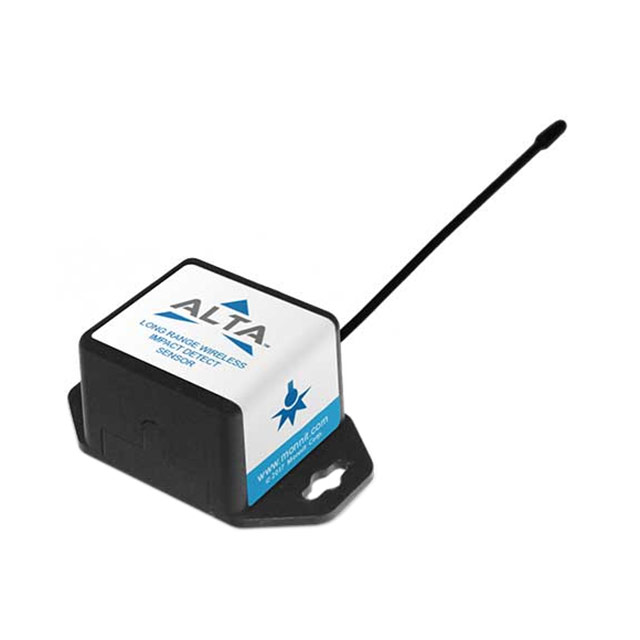

MNS2-9-W1-AC-IM

Active

Monnit Corporation

ACCELEROMETER 2G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNS2-9-W1-AC-IM

Active

Monnit Corporation

ACCELEROMETER 2G

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 89.99

Description

General part information

MNS2-9 Series

Accelerometer X, Y, Z Axis ±2g 800Hz

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNS2-9-W1-AC-IM	MNS2-9 Series

Acceleration Range [Max]	2 g	2 g
Acceleration Range [Min]	-2 g	-2 g
Accuracy	-	0.5 - 3 %
Accuracy - Highest (Lowest)	-	0.5 - 3.3 °C
Applications	-	Industrial Automation
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth	800 Hz	800 Hz
Current - Sensing	-	20 - 150 A
Current - Supply (Max)	-	22.6 - 35 mA
Features	Sleep Mode	Sleep Mode
For Measuring	-	AC
Frequency	-	50 Hz
Frequency	-	100 Hz
Humidity Range	-	0 % RH
Humidity Range	-	100 % RH
Mounting Type	Chassis Mount	Chassis Mount
Operating Pressure	-	50 - 300 PSI
Operating Pressure	-	344.74 - 2068.43 kPa
Operating Temperature [Max]	85 °C	55 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -18 °C
Output Type	-	900 MHz
Output Type	-	Voltage, Analog Voltage, PNP - Open Collector
Package / Case	IoT Finished Device	IoT Finished Device
Port Size	-	NPT
Port Size	-	0.25 "
Port Size	-	6.35 mm
Port Size	-	Male
Port Style	-	Threaded
Response Time	-	8 s
Sensor Type	-	Dry Contact Sensor, Current Sensor, Voltage Detection, Voltage, Water Detection, Water Temperature Sensor, Temperature, Humidity, Pulse Counter, Water Rope Sensor, Closed, Open, Button Press Sensor
Termination Style	-	Connector
Type	Digital	Digital
Voltage - Supply [Max]	3.8 V	3.8 V
Voltage - Supply [Min]	2 V	2 V

MNS2-9 Series

ALTA INDUSTRIAL WIRELESS TEMPERA

Part	Mounting Type	Package / Case	Accuracy - Highest (Lowest)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Acceleration Range [Max]	Acceleration Range [Min]	Features	Type	Bandwidth	Sensor Type	Output Type	Accuracy	For Measuring	Current - Sensing	Frequency [Min]	Frequency [Max]	Current - Supply (Max) [Max]	Output Type
Monnit Corporation MNS2-9-IN-TS-ST	Chassis Mount	IoT Finished Device	1 °C	85 °C	-40 °C	3.8 V	2 V
Monnit Corporation MNS2-9-W2-AC-GS	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V	Z	Y	X	2 g	-2 g	Sleep Mode	Digital	800 Hz
Monnit Corporation MNS2-9-W1-DC-CF				85 °C	-40 °C											Dry Contact Sensor	900 MHz
Monnit Corporation MNS2-9-IN-CM-020	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V									Current Sensor		2 %	AC	20 A	50 Hz	100 Hz	35 mA
Monnit Corporation MNS2-9-W1-TS-ST-L03	Chassis Mount	IoT Finished Device	1 °C	85 °C	-40 °C	3.8 V	2 V
Monnit Corporation MNS2-9-IN-AC-VM	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V	Z	Y	X			Sleep Mode
Monnit Corporation MNS2-9-W1-VD-DC				85 °C	-40 °C											Voltage Detection	900 MHz							Voltage
Monnit Corporation MNS2-9-W2-MA-020	Chassis Mount	IoT Finished Device		55 °C	-18 °C	3.8 V	2 V									Current Sensor				20 mA			22.6 mA
Monnit Corporation MNS2-9-IN-MA-020	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V									Current Sensor				20 mA			22.6 mA
Monnit Corporation MNS2-9-W2-VM-500				85 °C	-40 °C											Voltage	900 MHz							Voltage
