1SNK705550R0000

Active

TE Connectivity ENTRELEC

AUT SNK PI-SPRING

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

AUT SNK PI-SPRING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

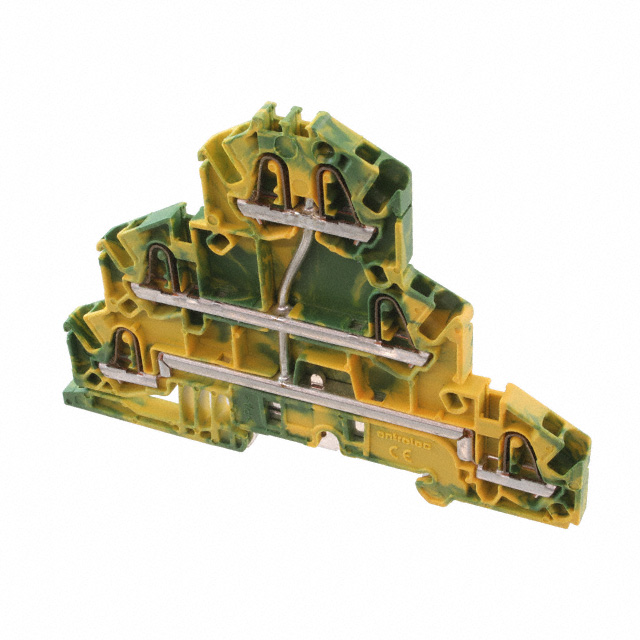

Terminal Block Connector 6 Position Ground, Earth Green, Yellow 12-26 AWG

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1SNK705550R0000	1SNK7 Series

Color	Green, Yellow	Gray, Green, Yellow, Red
Current - IEC	-	1 - 41 A
Current - UL	-	1 - 50 A
Features	-	Diode
For Use With/Related Products	-	SNK, ZK Series
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Levels	Connected	Connected
Number of Levels	3	1 - 3
Number of Levels	-	3
Number of Positions	6	2 - 6
Stripping Length	11 mm	11 - 12.5 mm
Terminal - Width [y]	5.2 mm	5.2 - 8 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Ground, Earth	Feed Through, Ground, Earth, End Plate
Voltage - IEC	-	1 - 630 V
Voltage - UL	-	300 V
Voltage - UL	-	600 V
Wire Gauge or Range - AWG [Max]	26 AWG	24 - 26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	8 - 12 AWG
Wire Gauge or Range - mm˛	-	0.2 - 0.5 mm˛
Wire Gauge or Range - mm˛	-	4 - 6 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²	4 - 10 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 - 0.5 mm²

AUT SNK PI-SPRING

Part	Current - IEC	Termination Style	Color	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL [custom]	Material Flammability Rating	Current - UL	Material - Insulation	Voltage - IEC	Terminal - Width [y]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels [custom]	Type	Stripping Length	Number of Levels	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	For Use With/Related Products	Features
TE Connectivity ENTRELEC 1SNK705510R0000	22 A	Push In, Spring	Gray	6	0.2 mm²	4 mm²	300 V	UL94 V-0	20 A	Nylon, Polyamide (PA)	500 V	5.2 mm	12 AWG	26 AWG	3	Feed Through	11 mm
TE Connectivity ENTRELEC 1SNK705550R0000		Push In, Spring	Green, Yellow	6	0.2 mm²	4 mm²		UL94 V-0		Nylon, Polyamide (PA)		5.2 mm	12 AWG	26 AWG		Ground, Earth	11 mm	Connected	3
TE Connectivity ENTRELEC 1SNK705031R0000	24 A	Push In, Spring						UL94 V-0	20 A	Nylon, Polyamide (PA)	1 kV	5.2 mm	12 AWG	26 AWG		Feed Through	11 mm		1	0.2 mm˛	4 mm˛	600 V
TE Connectivity ENTRELEC 1SNK705911R0000			Gray													End Plate							SNK, ZK Series
TE Connectivity ENTRELEC 1SNK705710R0000	1 A	Push In, Spring	Gray	4	0.2 mm²	4 mm²	300 V	UL94 V-0	1 A	Nylon, Polyamide (PA)	630 V	5.2 mm	12 AWG	26 AWG		Feed Through	11 mm		1					Diode
TE Connectivity ENTRELEC 1SNK708060R0000	41 A	Push In, Spring	Yellow	2	0.5 mm²	10 mm²		UL94 V-0	50 A	Nylon, Polyamide (PA)	1 kV	8 mm	8 AWG	24 AWG		Feed Through	12.5 mm		1			600 V
TE Connectivity ENTRELEC 1SNK706062R0000	32 A	Push In, Spring	Red	2				UL94 V-0	30 A	Nylon, Polyamide (PA)	1 kV	6 mm	10 AWG	26 AWG		Feed Through	12.5 mm		1	0.5 mm˛	6 mm˛	600 V
