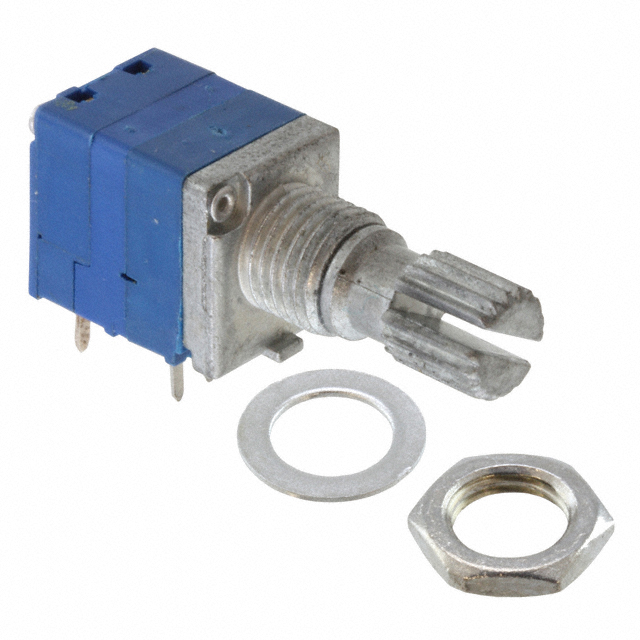

PTR901-2015K-B203

Active

Bourns Inc.

POT 20K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTR901-2015K-B203

Active

Bourns Inc.

POT 20K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTR901-2015K-B203

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Knurled and Slotted
Adjustment Type	Side Adjustment
Built in Switch	Rotary, SPST
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	20 kOhms
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.445 "
Size - Body [x]	11.3 mm
Size - Body [y]	0.374 in
Size - Body [y]	9.5 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTR901 Series

Part	Rotation	Bushing Thread	Bushing Thread	Actuator Type	Adjustment Type	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Resistance (Ohms)	Built in Switch	Taper	Power (Watts)	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Number of Gangs	Termination Style	Tolerance	Actuator Length [z]	Actuator Length	Number of Turns	Resistive Material	Resistance (Ohms)	Actuator Length [z]	Power (Watts)
Bourns Inc. PTR901-2015K-B202	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm	2k	Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.591 in	15 mm	1	Carbon
Bourns Inc. PTR901-2020K-B504	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm		Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.787 in		1	Carbon	500 kOhms	20 mm
Bourns Inc. PTR901-2015K-B203	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm		Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.591 in	15 mm	1	Carbon	20 kOhms
Bourns Inc. PTR901-2015K-A103	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm	10k	Rotary SPST	Logarithmic	0.025 W		0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.591 in	15 mm	1	Carbon			0.025 W
Bourns Inc. PTR901-20ACK-A103	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm	10k	Rotary SPST	Logarithmic	0.025 W		0.236 in	6 mm	1	Board Locks PC Pins	20 %			1	Carbon			0.025 W
Bourns Inc. PTR901-2015K-B502	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm		Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.591 in	15 mm	1	Carbon	5 kOhms
Bourns Inc. PTR901-2020K-B503	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm		Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.787 in		1	Carbon	50 kOhms	20 mm
Bourns Inc. PTR901-2015K-B104	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm		Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.591 in	15 mm	1	Carbon	100 kOhms
Bourns Inc. PTR901-1020K-B502	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm		Rotary SPST	Linear	0.05 W	50 mW	0.236 in	6 mm	1	Board Locks PC Pins	10 %	0.787 in		1	Carbon	5 kOhms	20 mm
Bourns Inc. PTR901-2020K-A103	300 ░	0.75	M7	Knurled and Slotted	Side Adjustment	0.374 in	9.5 mm	0.445 "	11.3 mm	10k	Rotary SPST	Logarithmic	0.025 W		0.236 in	6 mm	1	Board Locks PC Pins	20 %	0.787 in		1	Carbon		20 mm	0.025 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.22
		10	$ 3.70
		25	$ 3.30
		40	$ 3.10
		117	$ 3.04
		234	$ 2.90
		468	$ 2.38
		1053	$ 2.05
		4914	$ 1.85

Description

General part information

PTR901 Series

20k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.05W, 1/20W PC Pins, Board Locks
