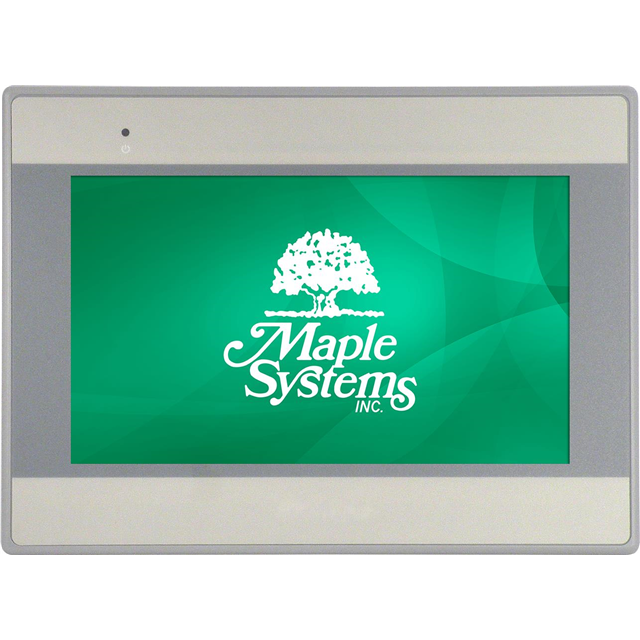

HMI5070L

Active

Maple Systems Inc

7.0" HMI, FREE SOFTWARE

Search across all available documentation for this part.

Active

Maple Systems Inc

7.0" HMI, FREE SOFTWARE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HMI5070L	HMI5070 Series

Case Color	Gray	Black, Gray
Display Type	Color	Color
Features	Memory Card Interface	Memory Card Interface
For Use With/Related Products	Multiple PLC/Controller Manufacturers	Multiple PLC/Controller Manufacturers
Ingress Protection	IP65 - Dust Tight, Water Resistant; NEMA 4X	IP65 - Dust Tight, Water Resistant; NEMA 4X
Size - Display	7 in	7 in
Type	Touchscreen	Touchscreen
Voltage - Supply	24 VDC	24 VDC
Voltage - Supply	-	10.5 V
Voltage - Supply	-	28 V

7.0" HMI, FREE SOFTWARE

Part	Display Type	Features	For Use With/Related Products	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Size - Display	Ingress Protection	Case Color	Voltage - Supply
Maple Systems Inc HMI5070B	Color	Memory Card Interface	Multiple PLC/Controller Manufacturers	Touchscreen	10.5 V	28 V	7 in	IP65 - Dust Tight, Water Resistant; NEMA 4X	Black
Maple Systems Inc HMI5070L	Color	Memory Card Interface	Multiple PLC/Controller Manufacturers	Touchscreen			7 in	IP65 - Dust Tight, Water Resistant; NEMA 4X	Gray	24 VDC
Maple Systems Inc HMI5070LB	Color	Memory Card Interface	Multiple PLC/Controller Manufacturers	Touchscreen			7 in	IP65 - Dust Tight, Water Resistant; NEMA 4X	Gray	24 VDC
Maple Systems Inc HMI5070DL	Color	Memory Card Interface	Multiple PLC/Controller Manufacturers	Touchscreen			7 in	IP65 - Dust Tight, Water Resistant; NEMA 4X	Gray	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 645.00

General part information

Human Machine Interface (HMI) Touchscreen 7.0" Color

Technical documentation and resources

No documents available
