MS3116E10-6S
ActiveAmphenol Industrial Operations

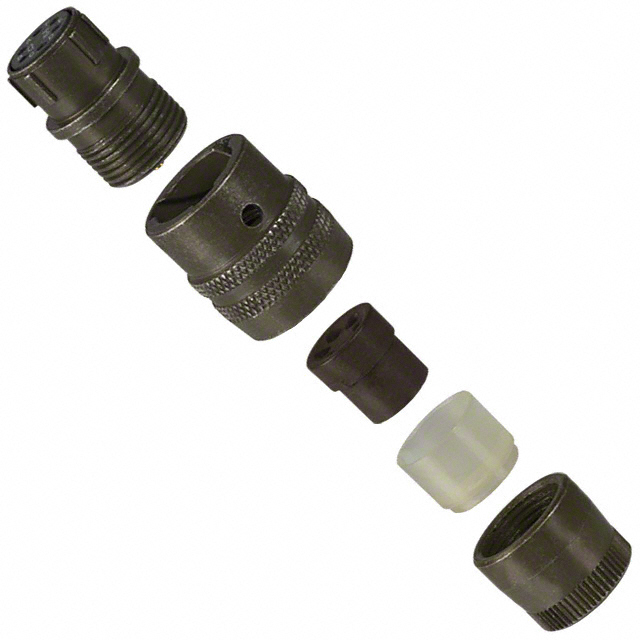

CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116E10-6S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116E10-6S | MS3116E10 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MS3116E10 Series
PLUG
| Part | Contact Material | Orientation | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shell Finish | Color | Primary Material | Qualification | Applications | Fastening Type | Insert Material | Shell Material | Features | Shielding | Ingress Protection | Shell Size - Insert | Connector Type | Grade | Number of Positions | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116E10-98S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3116E10-6P | Copper Alloy | N | Aluminum, Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Olive Drab | Metal | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Aluminum | Backshell, Coupling Nut | Unshielded | Environment Resistant | 10-6 | Male Pins, Plug | Military | 6 | Gold |
Amphenol Industrial Operations MS3116E10-6S | Copper Alloy | N | Aluminum, Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Olive Drab | Metal | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Aluminum | Backshell, Coupling Nut | Unshielded | Environment Resistant | 10-6 | Female Sockets, Plug | Military | 6 | Gold |
Description
General part information
MS3116E10 Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
