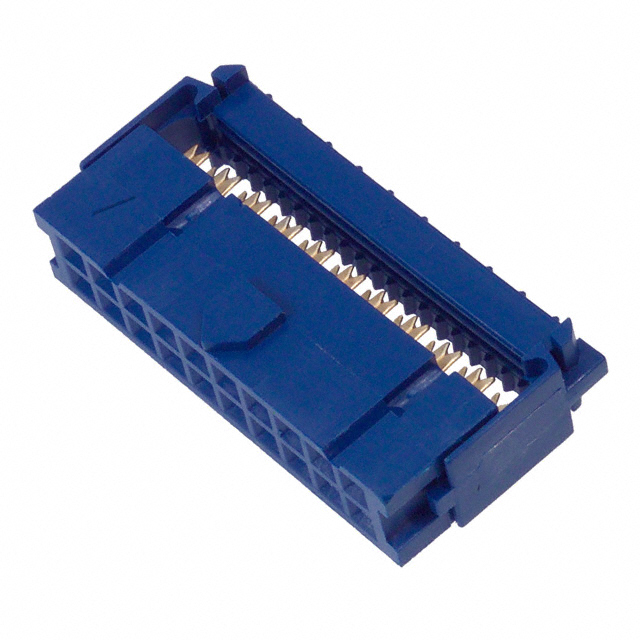

CWR-227-20-0000

Active

CW Industries

CONN RCPT 20POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSocket Connectors

CWR-227-20-0000

Active

CW Industries

CONN RCPT 20POS IDC GOLD

Deep-Dive with AI

DocumentsSocket Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-227-20-0000

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

CWR-227 Series

Part	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Row Spacing [x]	Row Spacing	Number of Positions	Connector Type	Features	Cable Termination	Mounting Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions
CW Industries CWR-227-16-0003	Tin-Lead	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm	16	Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	2.54 µm	100 µin	Blue
CW Industries CWR-227-40-0203	Tin	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable			Blue	40
CW Industries CWR-227-20-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	20
CW Industries CWR-227-50-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	50
CW Industries CWR-227-20-0000	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.25 Ám	10 Áin	Blue	20
CW Industries CWR-227-40-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	40
CW Industries CWR-227-20-0203	Tin	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable			Blue	20
CW Industries CWR-227-26-0203	Tin	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable			Blue	26
CW Industries CWR-227-10-0000	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.25 Ám	10 Áin	Blue	10
CW Industries CWR-227-26-0021	Gold	2	2.54 mm	0.1 in	Female Socket	0.1 in	2.54 mm		Receptacle	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	Ribbon Cable	0.76 Ám	30 Áin	Blue	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.09
		10	$ 3.71
		25	$ 3.52
		50	$ 3.44
		100	$ 3.27
		300	$ 2.86
		500	$ 2.78
		1000	$ 2.37
		2500	$ 2.21

Description

General part information

CWR-227 Series

20 Position Rectangular Receptacle Connector IDC Gold

Documents

Technical documentation and resources

Socket Connectors

Datasheet
