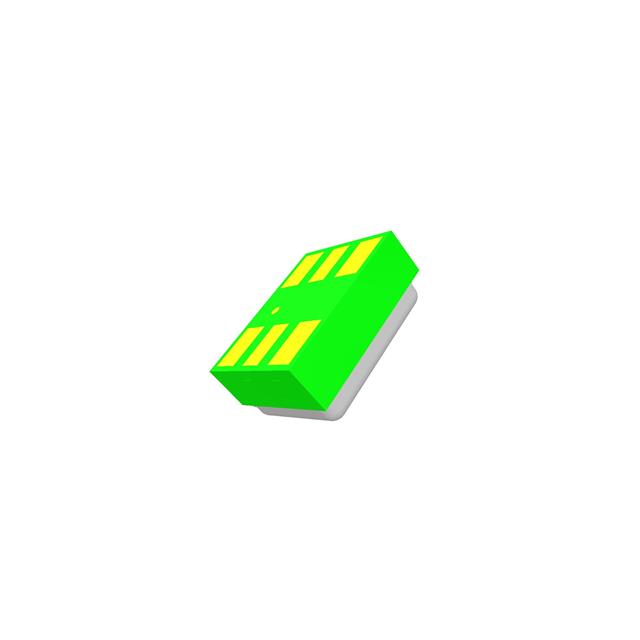

VMM-1627L-R
ActivePUI AUDIO
MIC MEMS ANALOG NC -31DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VMM-1627L-R
ActivePUI AUDIO
MIC MEMS ANALOG NC -31DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VMM-1627L-R |
|---|---|
| Current - Supply | 150 µA |
| Direction | Noise Cancelling |
| Frequency Range [Max] | 8 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.067 " |
| Height (Max) [Max] | 1.7 mm |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 73 dB |
| Sensitivity | -31 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.104 in |
| Size / Dimension [y] | 2.65 mm |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.55 | |
| 10 | $ 6.97 | |||
| 25 | $ 6.43 | |||
| 50 | $ 6.05 | |||
| 100 | $ 5.69 | |||
| 250 | $ 5.26 | |||
| 500 | $ 5.14 | |||
| Digi-Reel® | 1 | $ 8.55 | ||
| 10 | $ 6.97 | |||
| 25 | $ 6.43 | |||
| 50 | $ 6.05 | |||
| 100 | $ 5.69 | |||
| 250 | $ 5.26 | |||
| 500 | $ 5.14 | |||
| Tape & Reel (TR) | 1000 | $ 4.49 | ||
VMM Series
MIC MEMS ANALOG NC -31DB
| Part | Direction | Type | Height (Max) [Max] | Height (Max) [Max] | Sensitivity | Frequency Range [Min] | Frequency Range [Max] | S/N Ratio | Port Location | Output Type | Current - Supply | Termination | Voltage Range [Min] | Voltage Range [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUI AUDIO VMM-1627L-R | Noise Cancelling | MEMS (Silicon) | 0.067 " | 1.7 mm | -31 dB | 100 Hz | 8 kHz | 73 dB | Top | Analog | 150 µA | Solder Pads | 1.5 V | 3.6 V | 0.138 " | 0.104 in | 2.65 mm | 3.5 mm | Rectangular |
Description
General part information
VMM Series
100 Hz ~ 8 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.6 V Noise Cancelling (-31dB) Solder Pads
