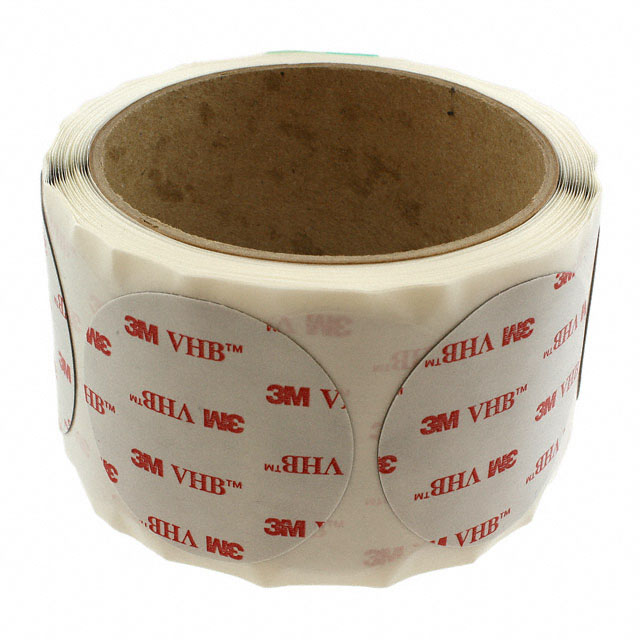

4926CIR-2(100)

Active

3M (TC)

TAPE DBL SIDED GRAY 2" DIA

Deep-Dive with AI

Search across all available documentation for this part.

4926CIR-2(100)

Active

3M (TC)

TAPE DBL SIDED GRAY 2" DIA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4926CIR-2(100)

Adhesive	Acrylic
Backing, Carrier	Paper
Color	Gray
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	0.381 mm
Thickness	0.015 in
Thickness	0.381 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose
Width [diameter]	2 in
Width [diameter]	50.8 mm

4926 Series

Part	Color	Length	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Shelf Life Start	Width [x]	Width [x]	Temperature Range	Temperature Range	Backing, Carrier	Tape Type	Usage	Shelf Life	Thickness	Thickness	Thickness	Width	Width	Width	Width [y]	Width [y]	Shielding	Cable Type	Style	Configuration	Length [x]	Length [x]	Width [diameter]	Width [diameter]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive
3M (TC) 4926-24X36	Gray	36 yd	32.9 m	108 ft	4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Manufacture	609.6 mm	24 in	200 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm
3M (TC) 4926SQ-0.5(5)	Gray	0.5 in	12.7 mm	0.5 in	4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment			200 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm	0.5 in	12.7 mm	0.5 in
3M (TC) 4926-2-5	Gray	5 yd	4.6 m	15 ft	4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment			200 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm				2 "	50.8 mm
3M (TC) 4926(3/4"X72YD)	Gray	72 yd	66 m	216 ft	4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment					Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm	19.05 mm	0.75 in	0.75 in
3M (TC) 4926-0.75-72	Gray	72 yd	66 m	216 ft	4 °C 40 °F	38 °C 100 °F				Acrylic	Date of Shipment			199 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm	19.05 mm	0.75 in	0.75 in
3M (TC) 4926-0124																												Shielded	Round Beige	Bidirectional	Centronics 26 pos Male to Male	2 '	609.6 mm
3M (TC) 4926CIR-2(100)	Gray				4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment			200 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm												2 in	50.8 mm
3M (TC) 1.125-5-4926	Gray	5 yd	4.6 m	15 ft	4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment			200 °F	93 °C	Paper	Double Coated Double Sided		24 Months	0.381 mm	0.015 in	0.381 mm		28.58 mm	1.13 in											12 mils	0.012 "	0.305 mm
3M (TC) 4926CIR-1(5)	Gray				4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment			200 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm												1 in	25.4 mm
3M (TC) 4926-1-4(100)	Gray				4 °C 40 °F	38 °C 100 °F	0.003 in	3 mils	0.076 mm	Acrylic	Date of Shipment	25.4 mm	1 in	200 °F	93 °C	Paper	Double Coated Double Sided	General Purpose	24 Months	0.381 mm	0.015 in	0.381 mm										4 "	101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 114.22

Description

General part information

4926 Series

Double Coated, Double Sided Tape Acrylic Adhesive Gray 2.00" (50.80mm) dia X

Documents

Technical documentation and resources

No documents available
