1127058

Active

Phoenix Contact

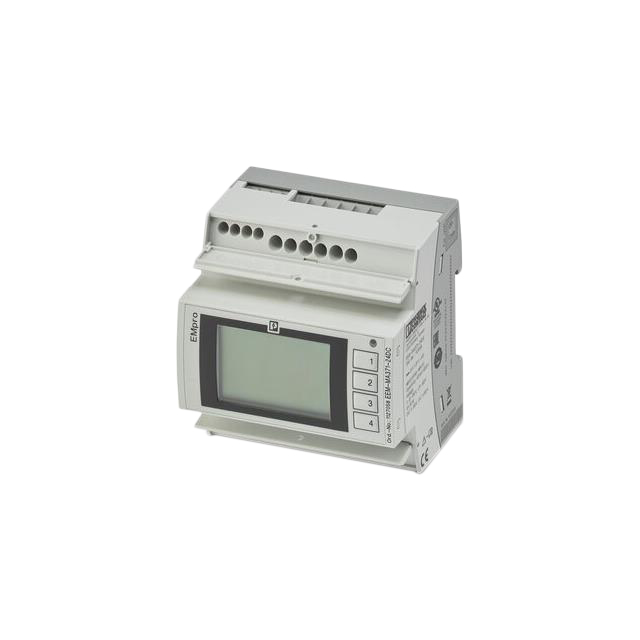

EEM-MA371-24DC

Search across all available documentation for this part.

Active

Phoenix Contact

EEM-MA371-24DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 474.40

General part information

Energy Monitor Display DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1127058	11270 Series

Display Type	-	LCD - Dual Color Characters, Backlight
Ingress Protection	IP40	IP54 - Dust Protected, Water Resistant, IP40
Measuring Range [Max]	690 VAC, 5 A	5 - 690 VAC
Measuring Range [Min]	0 A, 35 VAC	0 - 35 A
Measuring Type	Current (3-Phase), Wattage, Voltage	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Screw Terminal	Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply	24 VDC	24 VDC

EEM-MA770-24DC

Part	Voltage - Supply	Ingress Protection	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Measuring Type	Measuring Range [Max]	Measuring Range [Min]	Termination Style	Mounting Type	Display Type
Phoenix Contact 1127052	24 VDC	IP54 - Dust Protected, Water Resistant	55 °C	-10 °C	Energy Monitor	Current (3-Phase), Voltage, Wattage	5 A, 690 VAC	0 A, 20 VAC	Screw Terminal
Phoenix Contact 1127060	24 VDC	IP54 - Dust Protected, Water Resistant	55 °C	-10 °C	Energy Monitor	Current (3-Phase), Voltage, Wattage	5 A, 690 VAC	0 A, 35 VAC	Screw Terminal	DIN Rail	LCD - Dual Color Characters, Backlight
Phoenix Contact 1127059	24 VDC	IP40	55 °C	-10 °C	Energy Monitor	Current (3-Phase), Voltage, Wattage	5 A, 690 VAC	0 A, 35 VAC	Screw Terminal	DIN Rail	LCD - Dual Color Characters, Backlight
Phoenix Contact 1127058	24 VDC	IP40	55 °C	-10 °C	Energy Monitor	Current (3-Phase), Voltage, Wattage	5 A, 690 VAC	0 A, 35 VAC	Screw Terminal	DIN Rail
Phoenix Contact 1127061	24 VDC		55 °C	-10 °C	Energy Monitor	Current (3-Phase), Voltage, Wattage	5 A, 690 VAC	0 A, 35 VAC	Screw Terminal	DIN Rail
Phoenix Contact 1127055	24 VDC		55 °C	-10 °C	Energy Monitor	Current (3-Phase), Voltage, Wattage	5 A, 690 VAC	0 A, 35 VAC	Screw Terminal	DIN Rail
