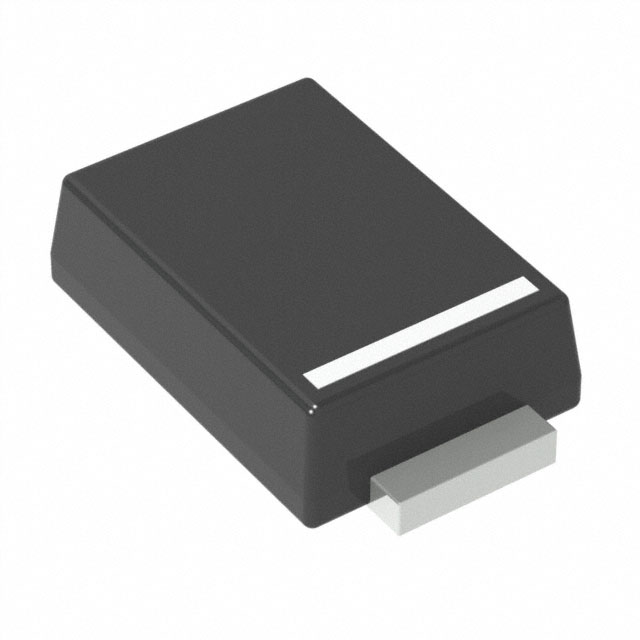

CUHS10F60,H3F
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 60V 1A US2H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUHS10F60,H3F
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 60V 1A US2H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUHS10F60,H3F |
|---|---|
| Capacitance @ Vr, F | 130 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 40 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 °C |
| Package / Case | 2-SMD, Flat Leads |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | US2H |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.07 | |||
| 9000 | $ 0.06 | |||
| 15000 | $ 0.06 | |||
| 21000 | $ 0.06 | |||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.05 | |||
| 150000 | $ 0.05 | |||
Description
General part information
CUHS10 Series
Diode 60 V 1A Surface Mount US2H
