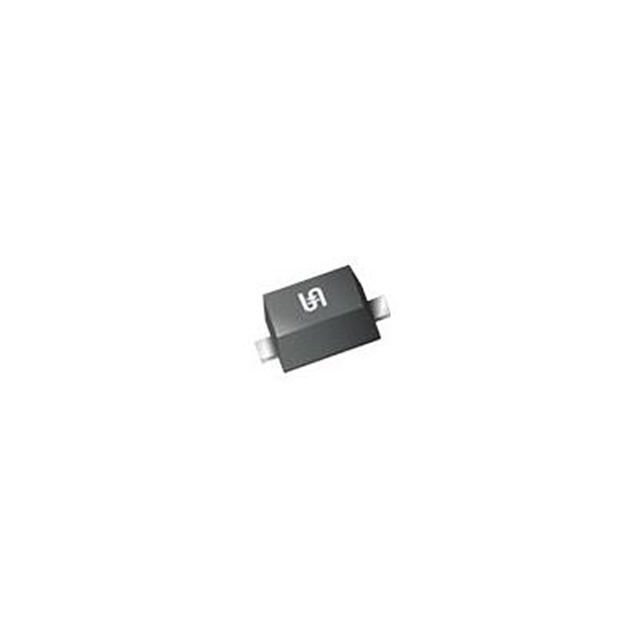

1SS400 RKG

Active

Taiwan Semiconductor Corporation

DIODE GP 100V 200MA SOD523F

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE GP 100V 200MA SOD523F

Technical Specifications

Parameters and characteristics for this part

Specification	1SS400 RKG

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	100 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SC-79, SOD-523
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-523F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Capacitance @ Vr, F	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Mounting Type	Technology
Taiwan Semiconductor Corporation 1SS400 RKG	SOD-523F	100 V	SC-79 SOD-523	4 pF	200 mA	150 °C	-55 °C	Any Speed	200 mA	4 ns	100 nA	Surface Mount	Standard
Taiwan Semiconductor Corporation 1SS400 RJG	SOD-523F	100 V	SC-79 SOD-523	4 pF	200 mA	150 °C	-55 °C	Any Speed	200 mA	4 ns	100 nA	Surface Mount	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 100 V 200mA Surface Mount SOD-523F
