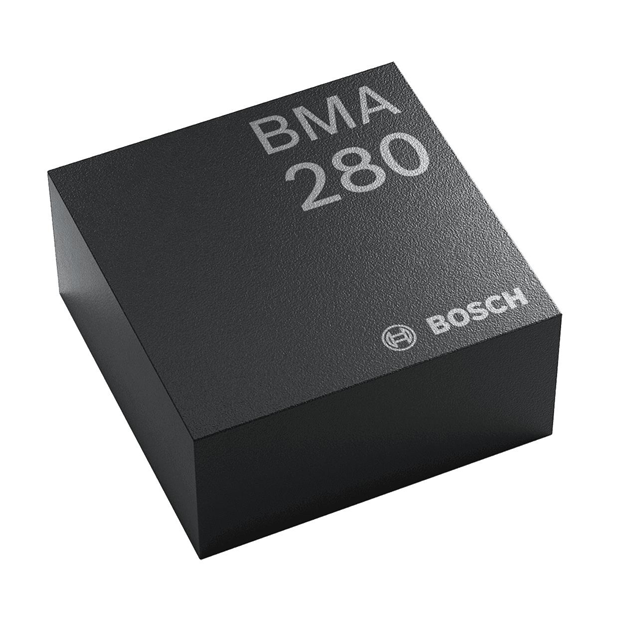

BMA280

Active

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Search across all available documentation for this part.

Active

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMA280	BMA280 Series

Acceleration Range	16 g, 6 g, 2 g, 4 g, 8 g	2 - 16 g
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth [Max]	500 Hz	500 Hz
Bandwidth [Min]	8 Hz	8 Hz
Contents	-	Board(s)
Features	Sleep Mode, Selectable Low Pass Filter, Adjustable Bandwidth, Selectable Scale, Temperature Sensor	Sleep Mode, Selectable Low Pass Filter, Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Function	-	Accelerometer
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	12-VFLGA	12-VFLGA
Sensitivity (LSB/g)	4096 LSB/g, 512 LSB/g	512 - 4096 LSB/g
Supplier Device Package	12-LGA (2x2)	12-LGA (2x2)
Type	Digital	Digital, Sensor
Utilized IC / Part	-	BMA280
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.62 V	1.62 V

ACCEL 2-16G I2C/SPI 12LGA

Part	Axis [z]	Axis [y]	Axis [x]	Package / Case	Mounting Type	Type	Bandwidth [Min]	Bandwidth [Max]	Acceleration Range	Supplier Device Package	Sensitivity (LSB/g)	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Contents	Function	Utilized IC / Part
Bosch Sensortec BMA280	Z	Y	X	12-VFLGA	Surface Mount	Digital	8 Hz	500 Hz	2 g, 4 g, 6 g, 8 g, 16 g	12-LGA (2x2)	512 LSB/g, 4096 LSB/g	Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale, Sleep Mode, Temperature Sensor	3.6 V	1.62 V	I2C, SPI	85 °C	-40 °C
Bosch Sensortec BMA280-SHUTL						Sensor												Board(s)	Accelerometer	BMA280

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 6g, 8g, 16g 8Hz ~ 500Hz 12-LGA (2x2)
