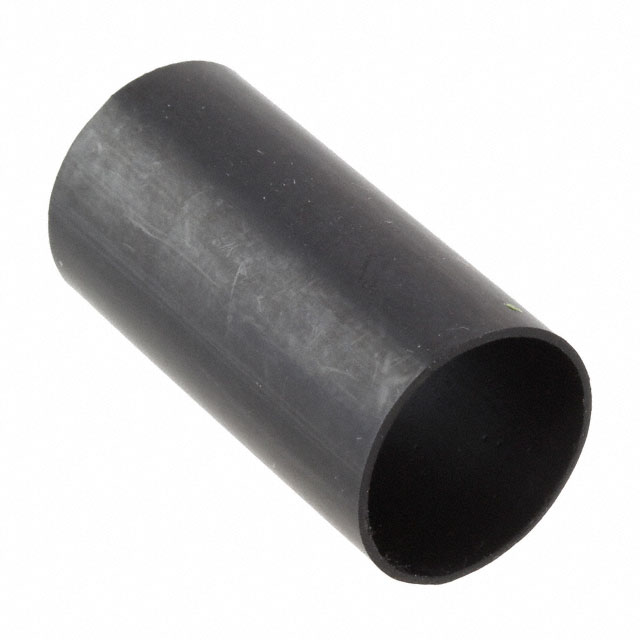

TECT-13.5/4.5-0-30MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.531" X 0.098' BLACK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.531" X 0.098' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	TECT-13.5/4.5-0-30MM

Color	Black
Features	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered [diameter]	4.52 mm
Inner Diameter - Recovered [diameter]	0.178 in
Inner Diameter - Supplied	0.531 "
Inner Diameter - Supplied	13.49 mm
Length	30 mm
Length	0.098 ft
Length	1.18 "
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	1.5 mm
Recovered Wall Thickness	0.059 in
Shrink Temperature	120 °C
Shrinkage Ratio	2 to 1

Part	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Length	Length	Length	Color	Shrinkage Ratio	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied	Inner Diameter - Supplied
TE Connectivity Raychem Cable Protection TECT-13.5/4.5-0-30MM	Adhesive Lined Flame Retardant Fluid Resistant	1.5 mm	0.059 in	120 °C	30 mm	0.098 ft	1.18 "	Black	2 to 1	-40 °C	120 °C	4.52 mm	0.178 in	0.531 "	13.49 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50000	$ 0.23

General part information

Heat Shrink 0.531" (13.49mm) 2 to 1 Black 0.098' (30.00mm, 1.18")
