3SU11560AB401BA0

Active

Siemens

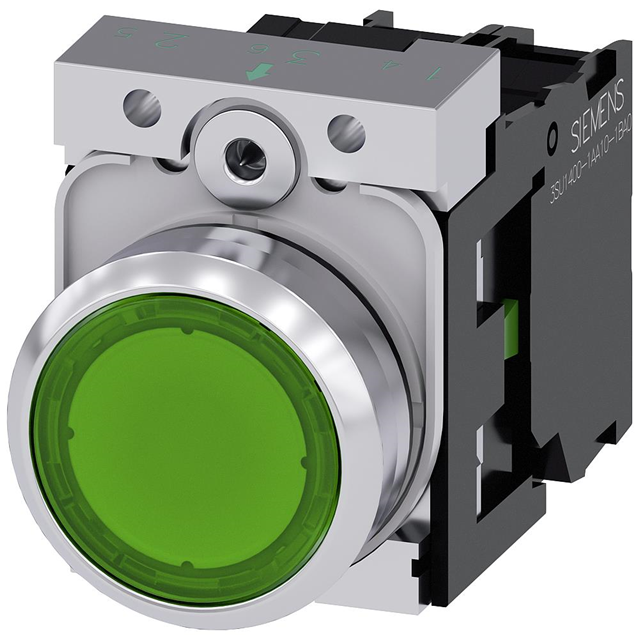

ILLUMINATED PUSHBUTTON, MOM, GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3SU11560AB401BA0

Active

Siemens

ILLUMINATED PUSHBUTTON, MOM, GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11560AB401BA0

Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	10 A
Electrical Life	10000000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	230 VAC
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	3000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1156 Series

Part	Mounting Type	Voltage Rating - AC	Illumination Type, Color	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Electrical Life	Color - Actuator/Cap	Switch Function	Illumination Voltage (Nominal)	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Ingress Protection	Termination Style	Type	Mechanical Life
Siemens 3SU11560AB301FA0	Panel Mount Front	500 V	LED Yellow	DPST-NO/NC	70 °C	-25 °C	500 V	10000000 Cycles	Yellow	Off-Mom On-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Screw Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB703BA0	Panel Mount Front	500 V	LED White	SPST-NO	70 °C	-25 °C	500 V	10000000 Cycles	Clear	Off-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Spring Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB403FA0	Panel Mount Front	500 V	Green LED	DPST-NO/NC	70 °C	-25 °C	500 V	10000000 Cycles	Green	Off-Mom On-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Spring Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB401BA0	Panel Mount Front	500 V	Green LED	SPST-NO	70 °C	-25 °C	500 V	10000000 Cycles	Green	Off-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Screw Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB603BA0	Panel Mount Front	500 V	LED White	SPST-NO	70 °C	-25 °C	500 V	10000000 Cycles	White	Off-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Spring Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB501FA0	Panel Mount Front	500 V	Blue LED	DPST-NO/NC	70 °C	-25 °C	500 V	10000000 Cycles	Blue	Off-Mom On-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Screw Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB701FA0	Panel Mount Front	500 V	LED White	DPST-NO/NC	70 °C	-25 °C	500 V	10000000 Cycles	Clear	Off-Mom On-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Screw Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB601BA0	Panel Mount Front	500 V	LED White	SPST-NO	70 °C	-25 °C	500 V	10000000 Cycles	White	Off-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Screw Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB001FA0	Panel Mount Front	500 V	Amber LED	DPST-NO/NC	70 °C	-25 °C	500 V	10000000 Cycles	Amber	Off-Mom On-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Screw Terminal	Illuminated Standard	3000000 Cycles
Siemens 3SU11560AB503BA0	Panel Mount Front	500 V	Blue LED	SPST-NO	70 °C	-25 °C	500 V	10000000 Cycles	Blue	Off-Mom	230 VAC	Button Round	10 A	22.3 mm	IP66 IP67 IP69K	Spring Terminal	Illuminated Standard	3000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 91.63
LCSC	Piece	1	$ 27.87

Description

General part information

3SU1156 Series

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
