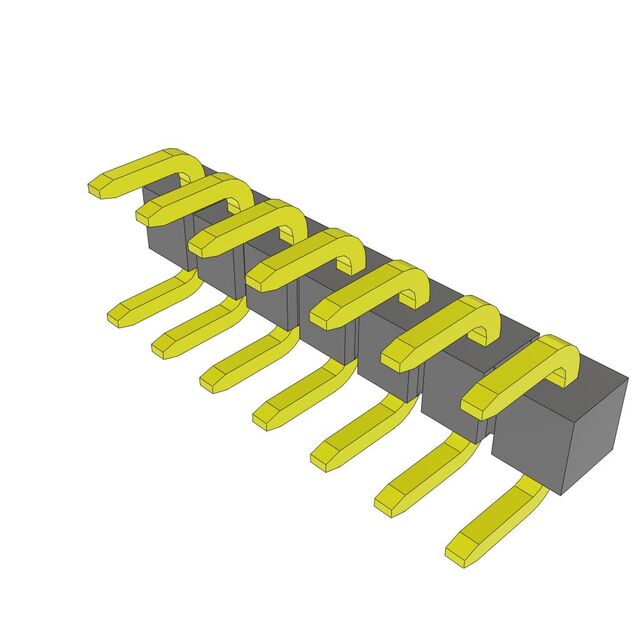

BTSW-107-01-F-S

Active

Samtec Inc.

.100" LOW PROFILE JUMPER

Search across all available documentation for this part.

Active

Samtec Inc.

.100" LOW PROFILE JUMPER

Technical Specifications

Parameters and characteristics for this part

Specification	BTSW-107-01-F-S

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Gender	Male Pins
Height [z]	2.54 mm
Height [z]	0.1 in
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	7
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Insulated

Part	Contact Finish Thickness	Color	Height [z]	Height [z]	Number of Positions or Pins (Grid)	Contact Finish	Type	Pitch [x]	Pitch [x]	Gender	Material Flammability Rating	Housing Material
Samtec Inc. BTSW-107-01-F-S	Flash	Black	2.54 mm	0.1 in	7	Gold	Insulated	2.54 mm	0.1 in	Male Pins	UL94 V-0	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 1.11

General part information

7 (1 x 7) Position Shunt Connector Black Insulated 0.100" (2.54mm) Gold
