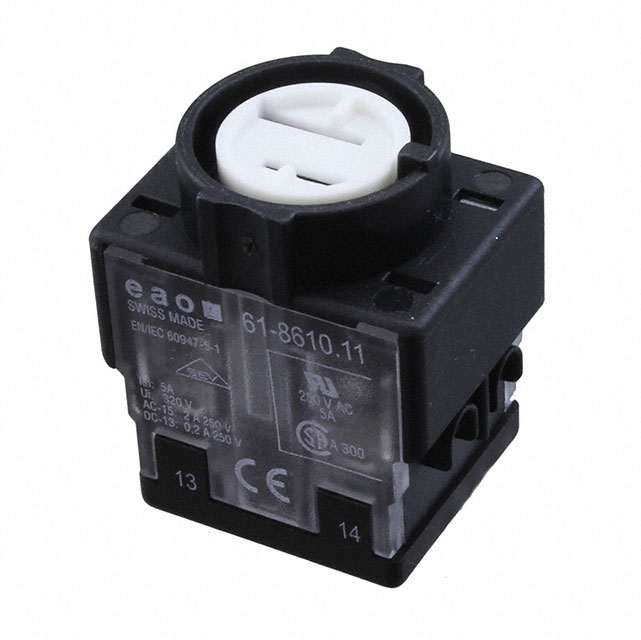

61-8610.11

Active

EAO

CONTACT BLOCKS N.O. SPST SCREW 5A 250VAC 250VDC

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCKS N.O. SPST SCREW 5A 250VAC 250VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO 5A @ 250VAC/DC

Technical documentation and resources

Specification	61-8610.11	61-8610 Series

(Select First, Then Apply Filters) Compatible Series	EAO, 61	EAO, 61
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	250 VAC, 5 A	0.3 - 250 VAC
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Quick Connect, Solder, Screw Terminal
Termination Style	-	0.11 in
Termination Style	-	2.8 mm

Part	Contact Rating @ Voltage	Termination Style	Termination Style	Termination Style	Circuit	(Select First, Then Apply Filters) Compatible Series	Requires
EAO 61-8610.17	5 A, 250 VAC	0.11 in	Quick Connect, Solder	2.8 mm	SPST-NO	61, EAO	Switch Body
EAO 61-8610.37	0.3 A, 50 VAC/DC	0.11 in	Quick Connect, Solder	2.8 mm	SPST-NO	61, EAO	Switch Body
EAO 61-8610.11	5 A, 250 VAC		Screw Terminal		SPST-NO	61, EAO	Switch Body
