HDX-WGKM0-16WBBL

Active

ITT Cannon, LLC

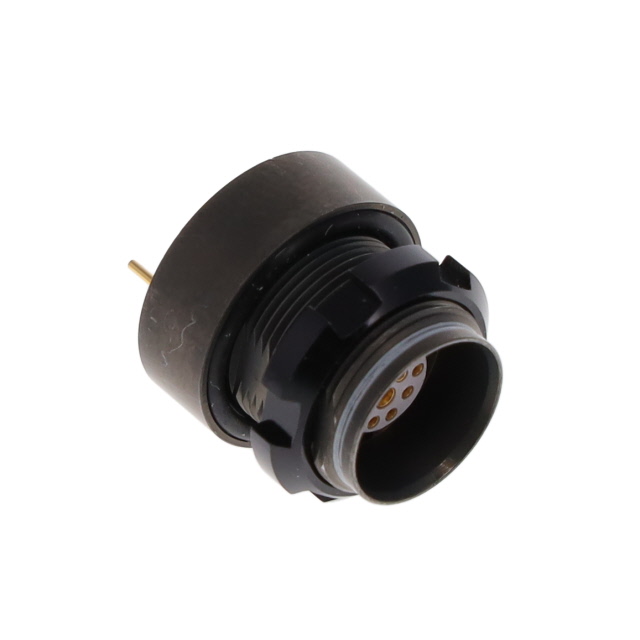

PUSH-PULL SOLDER CUP RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDX-WGKM0-16WBBL

Active

ITT Cannon, LLC

PUSH-PULL SOLDER CUP RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDX-WGKM0-16WBBL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A, 1 A
Fastening Type	Push-Pull
Ingress Protection	IPX8/IPX9K - Water Resistant, Waterproof
Insert Material	Polyetherimide (PEI), Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Brass
Shell Size - Insert [Max]	16
Shell Size - Insert [Min]	0
Shielding	Unshielded
Voltage Rating	250 VDC

HDX-WGKM0 Series

Part	Termination	Voltage Rating	Number of Positions	Shielding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Fastening Type	Contact Finish - Mating	Orientation	Contact Material	Connector Type	Shell Material	Insert Material	Primary Material	Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Current Rating (Amps)	Mounting Feature	Number of Positions	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]
ITT Cannon, LLC HDX-WGKM0-12UMCL	Solder	250 VDC	12	Unshielded	Panel Mount Through Hole	-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	C	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	12	1 A 5 A	Bulkhead - Front Side Nut
ITT Cannon, LLC HDX-WGKM0-16WBBL		250 VDC		Unshielded		-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	B	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	16	1 A 5 A	Bulkhead - Front Side Nut	16
ITT Cannon, LLC HDX-WGKM0-09WMAL		250 VDC		Unshielded		-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	A	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver			1 A 5 A	Bulkhead - Front Side Nut		0-09	3	6
ITT Cannon, LLC HDX-WGKM0-16WBAL		250 VDC		Unshielded		-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	A	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	16	1 A 5 A	Bulkhead - Front Side Nut	16
ITT Cannon, LLC HDX-WGKM0-12WMBL		250 VDC	12	Unshielded		-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	B	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	12	1 A 5 A	Bulkhead - Front Side Nut
ITT Cannon, LLC HDX-WGKM0-12UMBL	Solder	250 VDC	12	Unshielded	Panel Mount Through Hole	-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	B	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	12	1 A 5 A	Bulkhead - Front Side Nut
ITT Cannon, LLC HDX-WGKM0-09WMBL		250 VDC		Unshielded		-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	B	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver			1 A 5 A	Bulkhead - Front Side Nut		0-09	3	6
ITT Cannon, LLC HDX-WGKM0-09UMBL	Solder	250 VDC		Unshielded	Panel Mount Through Hole	-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	B	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver			1 A 5 A	Bulkhead - Front Side Nut		0-09	3	6
ITT Cannon, LLC HDX-WGKM0-12WMCL		250 VDC	12	Unshielded		-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	C	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	12	1 A 5 A	Bulkhead - Front Side Nut
ITT Cannon, LLC HDX-WGKM0-12UMAL	Solder	250 VDC	12	Unshielded	Panel Mount Through Hole	-51 °C	125 °C	IPX8/IPX9K - Water Resistant Waterproof	Ruthenium over Electroless Nickel	Push-Pull	Gold	A	Copper Alloy	Receptacle Female Sockets	Brass	Polyetherimide (PEI) Glass Filled	Metal	Silver	0	12	1 A 5 A	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.67
		10	$ 74.94
		25	$ 72.06
		50	$ 69.66
		100	$ 65.81

Description

General part information

HDX-WGKM0 Series

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
