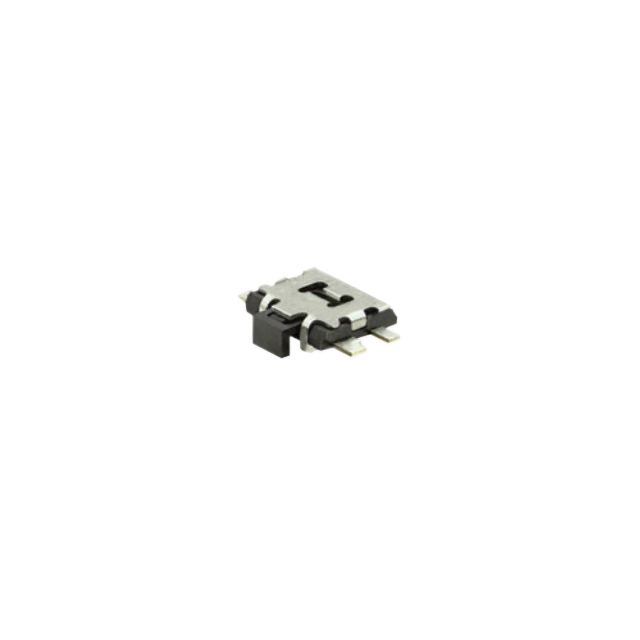

226DM2SAAR

Obsolete

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Circuit	Switch Function	Actuator Orientation	Actuator Length, Right Angle	Mechanical Life	Outline [y]	Outline [x]	Switch Travel	Features	Termination Style	Mounting Type	Actuator Type	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Operating Force
CTS Electrocomponents 226DM2SAAR	SPST-NO	Off-Mom	Side Actuated	3.5 mm	100000 Cycles	2.9 mm	3.5 mm	0.2 mm	Tactile Feedback	Gull Wing	Surface Mount, Right Angle	Rectangular Button	0.05 A, 12 VDC	85 °C	-40 °C	Non-Illuminated
CTS Electrocomponents 226DM2SABR	SPST-NO	Off-Mom	Side Actuated	3.5 mm	100000 Cycles	2.9 mm	3.5 mm	0.2 mm	Tactile Feedback	Gull Wing	Surface Mount, Right Angle	Rectangular Button	0.05 A, 12 VDC	85 °C	-40 °C	Non-Illuminated	220 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle

Technical documentation and resources

No documents available
