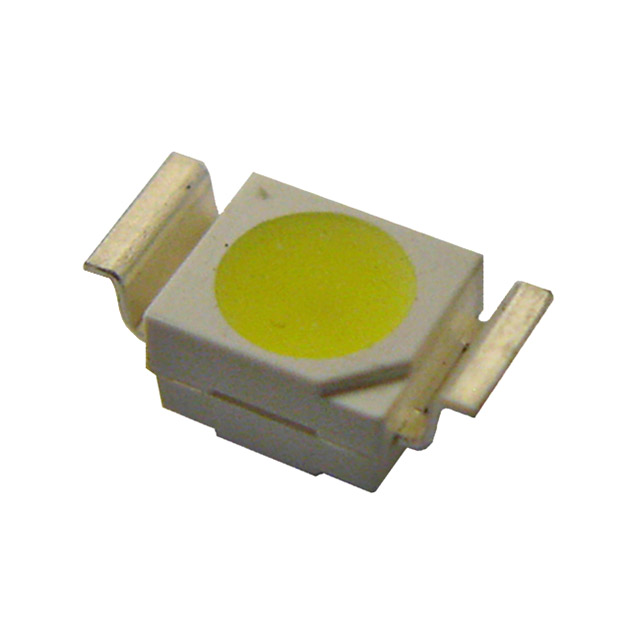

XZFWS45S-9
ActiveSunLED
LED WHITE CLR 2PLCC SMD BOT ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFWS45S-9
ActiveSunLED
LED WHITE CLR 2PLCC SMD BOT ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFWS45S-9 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.9 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 1690 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| Digi-Reel® | 1 | $ 0.70 | ||
| Tape & Reel (TR) | 6000 | $ 0.21 | ||
| 10000 | $ 0.21 | |||
| 50000 | $ 0.20 | |||
Description
General part information
XZFWS45 Series
White LED Indication - Discrete 3.3V 2-SMD, Gull Wing
