T4143012051-000
ActiveTE Connectivity AMP Connectors

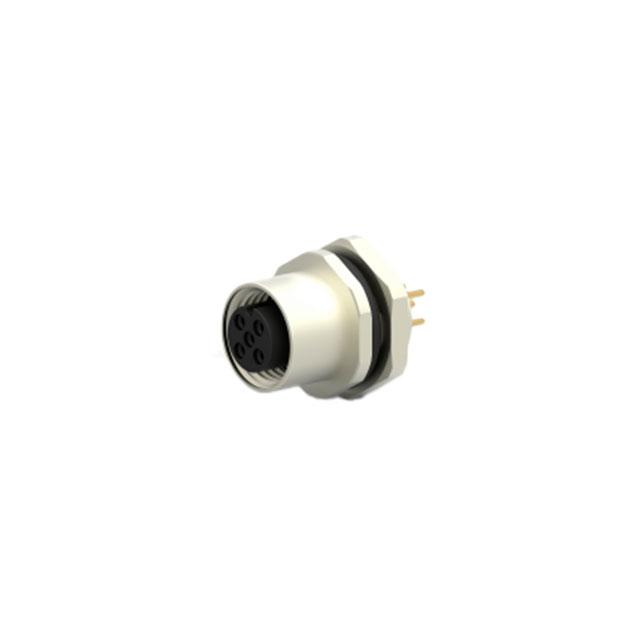

CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
T4143012051-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4143012051-000 | T41430 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | - | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-5, M12-2 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.23 | |
| 10 | $ 7.18 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.80 | |||
| 100 | $ 6.38 | |||
| 250 | $ 6.35 | |||
| 500 | $ 5.97 | |||
| 1000 | $ 5.33 | |||
T41430 Series
CONN PLUG FMALE 5POS GOLD SOLDER
| Part | Mounting Type | Material Flammability Rating | Contact Material | Shell Material | Shell Finish | Mounting Feature | Color | Primary Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Current Rating (Amps) | Shielding | Termination | Applications | Shell Size - Insert | Contact Finish - Mating | Voltage Rating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4143012051-000 | Panel Mount, Through Hole | UL94 V-0 | Copper Alloy | Copper Alloy | Nickel | Bulkhead - Rear Side Nut | Silver | Metal | A | 85 °C | -40 °C | Polyamide (PA66), Nylon 6/6 | 4 A | Unshielded | Solder | Industrial | M12-5 | Gold | 60 VDC | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | |
TE Connectivity AMP Connectors T4143012021-000 | Panel Mount, Through Hole | UL94 V-0 | Copper Alloy | Copper Alloy | Nickel | Bulkhead - Rear Side Nut | Silver | Metal | A | 85 °C | -40 °C | Polyamide (PA66), Nylon 6/6 | 4 A | Unshielded | Solder | Industrial | M12-2 | Gold | 250 VDC | Female Sockets, Plug | 3 µin | 0.076 µm | IP67 - Dust Tight, Waterproof | 2 |
Description
General part information
T41430 Series
5 Position Circular Connector Plug, Female Sockets Solder
