2-1102603-5
ActiveTE Connectivity AMP Connectors

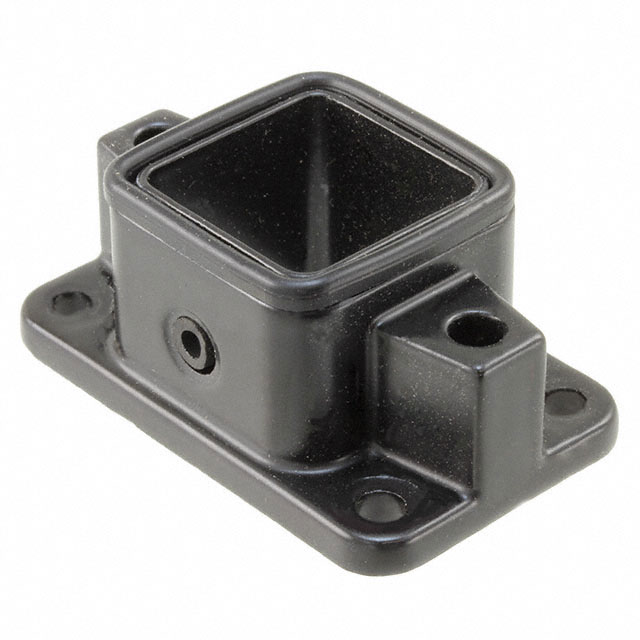

CONN BASE BOTTOM ENTRY SZ1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1102603-5
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1102603-5 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Finish | Corrosion Coating |
| Housing Material | Aluminum |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Size | 1 Gallon |
| Size / Dimension [x] | 2.008 in |
| Size / Dimension [x] | 51 mm |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [z] | 22 mm |
| Size / Dimension [z] | 0.866 " |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 111.79 | |
1102603 Series
CONN BASE BOTTOM ENTRY SZ1
| Part | Size | Lock Location | Connector Type | Housing Material | Housing Finish | Housing Color | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Ingress Protection | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102603-5 | 1 Gallon | Screw Locks on Hood | Base - Panel Mount | Aluminum | Corrosion Coating | Black | 32 mm | 1.26 in | 22 mm | 0.866 " | 2.008 in | 51 mm | IP68 - Dust Tight, Waterproof | Bottom Entry |
Description
General part information
1102603 Series
Base - Panel Mount Connector Bottom Entry 1 IP68 - Dust Tight, Waterproof
