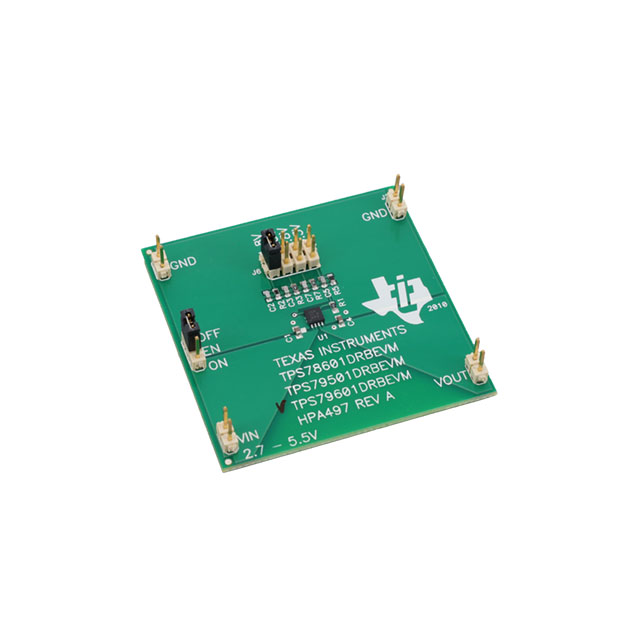

Specification	TPS79601DRBEVM

Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output	1 A
Regulator Type	Positive Adjustable
Supplied Contents	Board(s)
Utilized IC / Part	TPS79601
Voltage - Input (Maximum)	5.5 V
Voltage - Input (Minimum)	2.7 V
Voltage - Output (1)	1.8 V
Voltage - Output (2)	2.5 V
Voltage - Output (3)	2.8 V
Voltage - Output (4)	3.3 V

TPS79601 Series

Part	Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Dropout (Max)	Output Type	Control Features	PSRR (Maximum)	PSRR (Minimum)	Mounting Type	Voltage - Output (Min/Fixed)	Protection Features	Package / Case	Output Configuration	Package Name	Number of Regulators	Current - Output	Current - Quiescent (Iq)	Package Width	Package Length	Voltage - Output (Max)	Package Leads
Texas Instruments TPS79628DCQR	5.5 V	125 °C	-40 °C	0.37 V	Fixed	Enable	59 dB	42 dB	Surface Mount	2.8 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA
Texas Instruments TPS79625DCQR	5.5 V	125 °C	-40 °C		Fixed	Enable	59 dB	42 dB	Surface Mount	2.5 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA
Texas Instruments TPS79613DRBR	5.5 V	125 °C	-40 °C		Fixed	Enable	59 dB	42 dB	Surface Mount	1.3 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	8-VDFN Exposed Pad	Positive	8-SON	1	1 A	385 µA	3 mm	3 mm
Texas Instruments TPS79618DCQ	5.5 V	125 °C	-40 °C		Fixed	Enable	59 dB	42 dB	Surface Mount	1.8 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA
Texas Instruments TPS79618DCQR	5.5 V	125 °C	-40 °C		Fixed	Enable	59 dB	42 dB	Surface Mount	1.8 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA
Texas Instruments TPS79633DCQR	5.5 V	125 °C	-40 °C	0.33 V	Fixed	Enable	59 dB	42 dB	Surface Mount	3.3 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA
Texas Instruments TPS79650DRBT	5.5 V	125 °C	-40 °C	0.3 V	Fixed	Enable	59 dB	42 dB	Surface Mount	5 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	8-VDFN Exposed Pad	Positive	8-SON	1	1 A	385 µA	3 mm	3 mm
Texas Instruments TPS79601DCQ	5.5 V	125 °C	-40 °C		Adjustable	Enable	59 dB	42 dB	Surface Mount	1.2 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA			5.5 V
Texas Instruments TPS79618KTTR	5.5 V	125 °C	-40 °C		Fixed	Enable	59 dB	42 dB	Surface Mount	1.8 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)		Positive	D2PAK TO-263 (DDPAK-5)	1	1 A	385 µA				5 Leads
Texas Instruments TPS79650DCQR	5.5 V	125 °C	-40 °C	0.3 V	Fixed	Enable	59 dB	42 dB	Surface Mount	5 V	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	SOT-223-6	Positive	SOT-223-6	1	1 A	385 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TPS78628KTTR

TPS79601DRBEVM | Datasheet
