RA3-1A-DC-2-RL

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

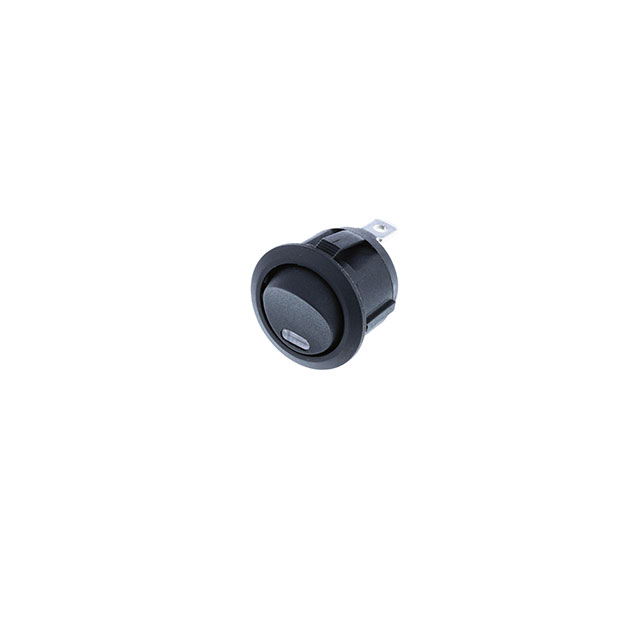

Rocker Switch SPST 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RA3-1A-DC-2-RL	RA3-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	Red, LED	Amber, LED, Green, Red
Illumination Voltage (Nominal)	14 VDC	14 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	14 V	14 V

SWITCH ROCKER SPST 20A 14V

Part	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Illumination Type, Color	Actuator Marking	Panel Cutout Dimensions [diameter]	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Color - Actuator/Cap	Actuator Type	Mounting Type	Circuit	Mechanical Life
Switch Components RA3-1A-DC-2-AL	On-Off	20 A	14 V	Amber, LED	No Marking	20.2 mm	6000 Cycles	Quick Connect - 0.187" (4.7mm)	-25 °C	85 °C	14 VDC	Black	Round - Illuminated	Panel Mount, Snap-In	SPST	10000 Steps
Switch Components RA3-1A-DC-2-GL	On-Off	20 A	14 V	Green, LED	No Marking	20.2 mm	6000 Cycles	Quick Connect - 0.187" (4.7mm)	-25 °C	85 °C	14 VDC	Black	Round - Illuminated	Panel Mount, Snap-In	SPST	10000 Steps
Switch Components RA3-1A-DC-2-RL	On-Off	20 A	14 V	LED, Red	No Marking	20.2 mm	6000 Cycles	Quick Connect - 0.187" (4.7mm)	-25 °C	85 °C	14 VDC	Black	Round - Illuminated	Panel Mount, Snap-In	SPST	10000 Steps
