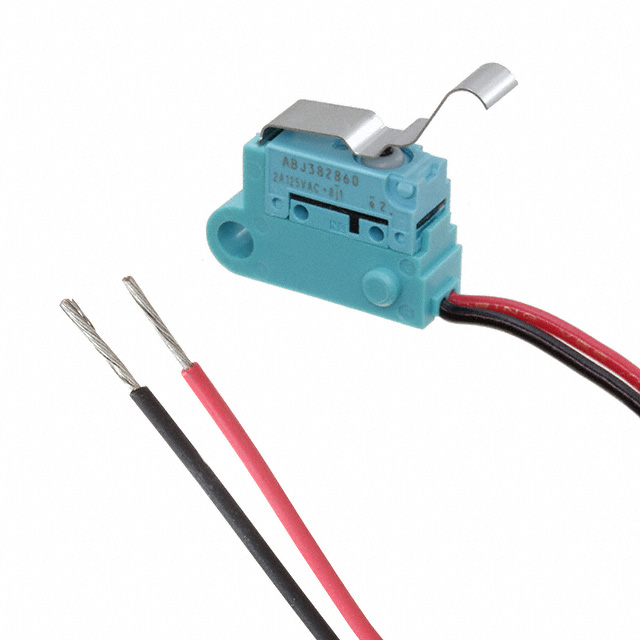

ABJ382860

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 2A 125V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 2A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNP ACT SPST-NC 0.1A 125V

Part	Operating Position	Operating Position	Differential Travel	Differential Travel	Actuator Type	Operating Force	Termination Style	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Release Force	Ingress Protection	Voltage Rating - DC	Circuit	Switch Function	Mechanical Life	Electrical Life
Panasonic Electric Works ABJ382861	0.64 in	16.3 mm	0.5 mm	0.02 in	Leaf, Lever	179 gf	Wire Leads	0.055 in	1.4 mm	85 °C	-40 °C	125 V	100 mA	Chassis Mount	27 gf	IP67 - Dust Tight, Waterproof	30 V	SPST-NC	On-Mom	500000 Cycles	100000 Cycles
Panasonic Electric Works ABJ382860	0.64 in	16.3 mm	0.5 mm	0.02 in	Leaf, Lever	179 gf	Wire Leads	0.055 in	1.4 mm	85 °C	-40 °C	125 V	2 A	Chassis Mount	27 gf	IP67 - Dust Tight, Waterproof	30 V	SPST-NC	On-Mom	500000 Cycles	30000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NC Chassis Mount
