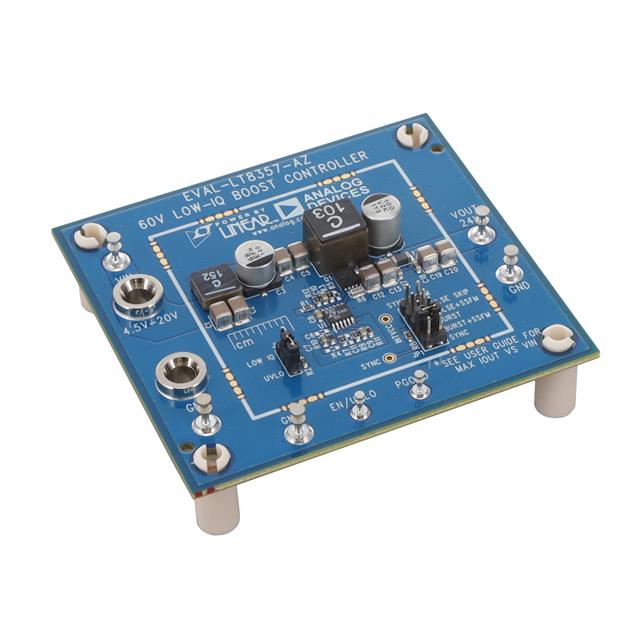

EVAL-LT8357-AZ

Active

Analog Devices

EVAL BOARD FOR LT8357

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EVAL-LT8357-AZ

Active

Analog Devices

EVAL BOARD FOR LT8357

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL-LT8357-AZ

Board Type	Fully Populated
Frequency - Switching	200 kHz
Main Purpose	DC/DC, Step Up
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Boost
Supplied Contents	Board(s)
Utilized IC / Part	LT8357
Voltage - Input [Max]	20 V
Voltage - Input [Min]	4.5 V
Voltage - Output	24 V

LT8357 Series

60V 2MHz Low-IQBoost, SEPIC and Flyback Controller

Part	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Outputs and Type	Outputs and Type	Regulator Topology	Frequency - Switching	Utilized IC / Part	Board Type	Main Purpose	Supplied Contents	Output Configuration	Supplier Device Package	Mounting Type	Number of Outputs	Package / Case	Package / Case	Duty Cycle (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Output Phases	Topology	Output Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Function	Clock Sync	Synchronous Rectifier	Frequency - Switching [Min]	Frequency - Switching [Max]
Analog Devices EVAL-LT8357-AZ	4.5 V	20 V	24 V	Non-Isolated	1	Boost	200 kHz	LT8357	Fully Populated	DC/DC Step Up	Board(s)
Analog Devices LT8357JMSE#PBF												Positive	12-MSOP-EP	Surface Mount	1	12-TSSOP Exposed Pad	0.118 in 3 mm	95 %	150 °C	-40 °C	Current Limit Enable Frequency Control Power Good Soft Start	1	Boost Flyback SEPIC	Transistor Driver	60 V	3 V	Step-Up Step-Up/Step-Down			100 kHz	2 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 159.11

Description

General part information

LT8357 Series

The LT8357 is a wide input range, current mode, DC/DC controller which can be configured as a boost, SEPIC or flyback converter. The LT8357 drives a low side N-channel power MOSFET with 5V split gate drive. The current mode architecture allows adjustable and synchronizable 100kHz to 2MHz fixed frequency operation, or internal 19% triangle spread spectrum operation for low EMI. At light load, either pulse-skipping mode or low-ripple Burst Mode operation can be selected. Additional features include output power good and output short circuit protection in SEPIC and flyback configurations.With a wide 3V to 60V input voltage range and 8μA low quiescent current, the LT8357 provides a simple, compact and efficient solution for automotive, industrial, and battery-powered systems.APPLICATIONSAutomotive and Industrial SystemsBattery-Powered SystemsPortable Electronic Equipment

Documents

Technical documentation and resources
