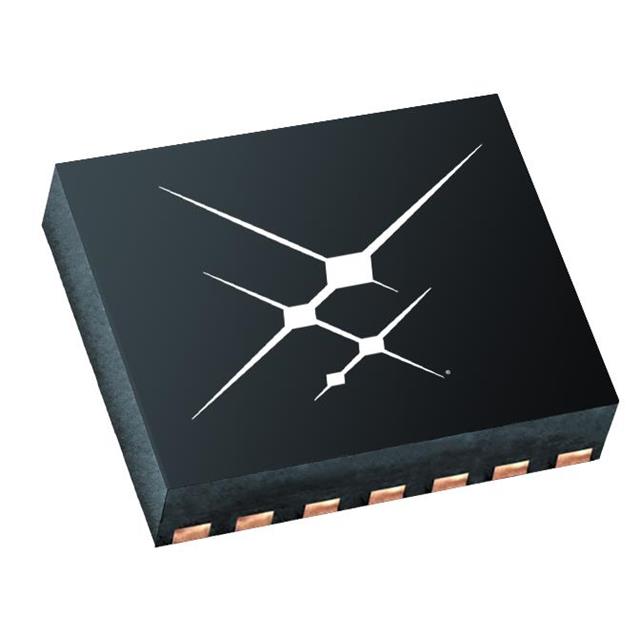

SI8273GA-IM1

Obsolete

Skyworks Solutions Inc.

DGTL ISO 1KV 1CH GATE DVR 14DFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI8273GA-IM1

Obsolete

Skyworks Solutions Inc.

DGTL ISO 1KV 1CH GATE DVR 14DFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8273GA-IM1

Approval Agency	UL, CSA, VDE, CQC
Common Mode Transient Immunity (Min) [Min]	200 V/ns
Current - Output High, Low	1.8 A, 4 A
Current - Peak Output	4 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-VDFN
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Pulse Width Distortion (Max) [Max]	8 ns
Rise / Fall Time (Typ) [custom]	13.3 ns
Rise / Fall Time (Typ) [custom]	10.5 ns
Supplier Device Package	14-DFN (5x5)
Technology	RF Coupling
Voltage - Isolation	1000 VAC
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	4.2 V

SI8273 Series

Part	Utilized IC / Part	Contents	Supplied Contents	Function	Type	Current - Peak Output	Mounting Type	Voltage - Isolation	Package / Case	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low	Number of Channels	Pulse Width Distortion (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Approval Agency	Technology	Supplier Device Package	Qualification	Grade	Package / Case [x]	Package / Case [y]	Number of Channels [custom]	Propagation Delay tpLH / tpHL (Max)
Skyworks Solutions Inc. SI8273ISO-KIT	Si8273	Board(s)	Board(s)	Digital Isolator	Interface
Skyworks Solutions Inc. SI8273GA-IM1						4 A	Surface Mount	1000 VAC	14-VDFN	200 V/ns	125 °C	-40 °C	1.8 A 4 A	1	8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UL VDE	RF Coupling	14-DFN (5x5)
Skyworks Solutions Inc. SI8273DBD-AS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UL VDE	RF Coupling	16-SOIC	AEC-Q100	Automotive	0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273ABD-IM						4 A	Surface Mount	2500 Vrms	14-VFLGA	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)					2
Skyworks Solutions Inc. SI8273AB-IM						4 A	Surface Mount	2500 Vrms	14-VFLGA	150 kV/µs	125 °C	-40 °C	1.8 A 4 A		8 ns			4.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)					2	60 ns
Skyworks Solutions Inc. SI8273ABD-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273BB-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	9.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273BBD-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	150 kV/µs	125 °C	-40 °C	1.8 A 4 A		8 ns			9.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2	60 ns
Skyworks Solutions Inc. SI8273GBD-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273BB-AS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UL VDE	RF Coupling	16-SOIC	AEC-Q100	Automotive	0.154 in	3.9 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SI8273 Series

4A Gate Driver RF Coupling 1000Vrms 1 Channel 14-DFN (5x5)

Documents

Technical documentation and resources
