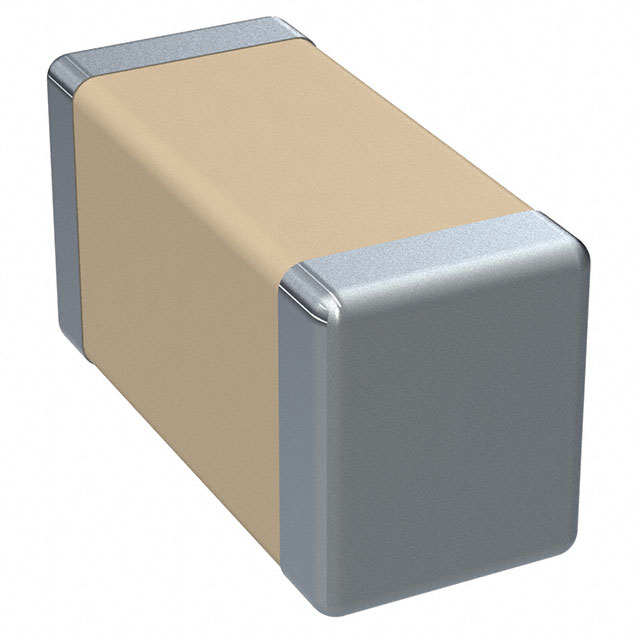

C1206W683KCRACTU
ActiveKEMET
CAP CER 0.068UF 500V X7R 1206
Deep-Dive with AI
Search across all available documentation for this part.
C1206W683KCRACTU
ActiveKEMET
CAP CER 0.068UF 500V X7R 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1206W683KCRACTU |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 0.068 µF |
| Features | ArcShield™, High Voltage, Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) | 1.9 mm |
| Thickness (Max) [Max] | 0.075 in |
| Tolerance | 10 % |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.53 | |
| 10 | $ 1.01 | |||
| 100 | $ 0.74 | |||
| 1000 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.53 | ||
| 10 | $ 1.01 | |||
| 100 | $ 0.74 | |||
| 1000 | $ 0.60 | |||
| Tape & Reel (TR) | 2000 | $ 0.58 | ||
| 4000 | $ 0.55 | |||
| 6000 | $ 0.55 | |||
| 10000 | $ 0.53 | |||
| 14000 | $ 0.52 | |||
Description
General part information
C1206W Series
0.068 µF ±10% 500V Ceramic Capacitor X7R 1206 (3216 Metric)
