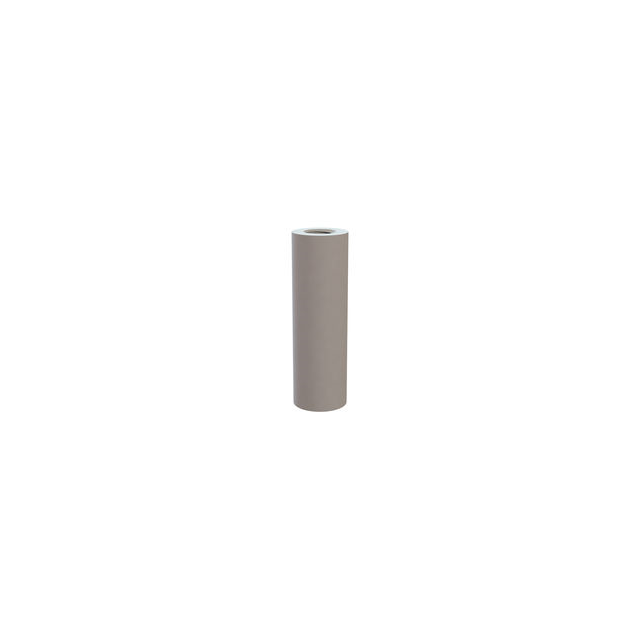

15TSP020

Active

Essentra Access Solutions

ROUND STANDOFF, #8-32 THREAD, 1.

Deep-Dive with AI

Search across all available documentation for this part.

15TSP020

Active

Essentra Access Solutions

ROUND STANDOFF, #8-32 THREAD, 1.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15TSP020

Between Board Height	1 in
Between Board Height	25.4 mm
Color	Natural
Diameter - Outside [diameter]	0.313 in
Diameter - Outside [diameter]	7.94 mm
Gender	Female
Length - Overall	25.4 mm
Length - Overall	1 "
Material	Nylon
Screw, Thread Size	#8-32
Threaded/Unthreaded	Threaded
Type	Round Standoff

15TSP Series

Part	Between Board Height [z]	Between Board Height [z]	Color	Screw, Thread Size	Type	Length - Overall	Length - Overall	Gender	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Threaded/Unthreaded	Material	Between Board Height	Between Board Height	Between Board Height	Length - Overall	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions 15TSP379	30.15 mm	1.187 in	Natural	#10-24	Round Standoff	30.15 mm	1.187 in	Female	0.375 in	0.375 in	9.53 mm	Threaded	Nylon
Essentra Access Solutions 15TSP042			Natural	#8-32	Round Standoff			Female	0.313 in		7.94 mm	Threaded	Nylon	15.88 mm	0.625 in	0.625 in
Essentra Access Solutions 15TSP027			Natural	#10-20	Round Standoff	0.375 in	0.375 in	Female	0.5 in	0.5 in	12.7 mm	Threaded	Nylon	9.53 mm	0.375 in	0.375 in	9.53 mm
Essentra Access Solutions 15TSP105			Natural	#4-40	Round Standoff	12.7 mm	0.5 in	Female	0.188 "		4.76 mm	Threaded	Nylon	12.7 mm	0.5 in	0.5 in	0.5 in
Essentra Access Solutions 15TSP102			Natural	#4-40	Round Standoff	7.94 mm		Female	0.188 "		4.76 mm	Threaded	Nylon	7.94 mm	0.313 "			0.313 in
Essentra Access Solutions 15TSP019			Natural	#8-32	Round Standoff			Female	0.313 in		7.94 mm	Threaded	Nylon	19.05 mm	0.75 in	0.75 in		0.75 in	19.05 mm	0.75 in
Essentra Access Solutions 15TSP011			Natural	#8-32	Round Standoff			Female	0.25 in	0.25 in	6.35 mm	Threaded	Nylon	6.35 mm	0.25 in	0.25 in		0.25 in	6.35 mm	0.25 in
Essentra Access Solutions 15TSP055			Natural	#2-56	Round Standoff			Female	0.188 "		4.76 mm	Threaded	Nylon	11.11 mm	0.438 in			0.438 in	11.11 mm
Essentra Access Solutions 15TSP020			Natural	#8-32	Round Standoff	25.4 mm	1 "	Female	0.313 in		7.94 mm	Threaded	Nylon	25.4 mm	1 in
Essentra Access Solutions 15TSP147			Natural	#6-32	Round Standoff			Female	0.188 "		4.76 mm	Threaded	Nylon	15.88 mm	0.625 in	0.625 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		5	$ 0.40
		10	$ 0.37
		25	$ 0.34
		50	$ 0.32
		100	$ 0.30
		250	$ 0.27
		500	$ 0.26
		1000	$ 0.25

Description

General part information

15TSP Series

Round Standoff Threaded #8-32 Nylon 1.000" (25.40mm) 1" Natural

Documents

Technical documentation and resources

No documents available
