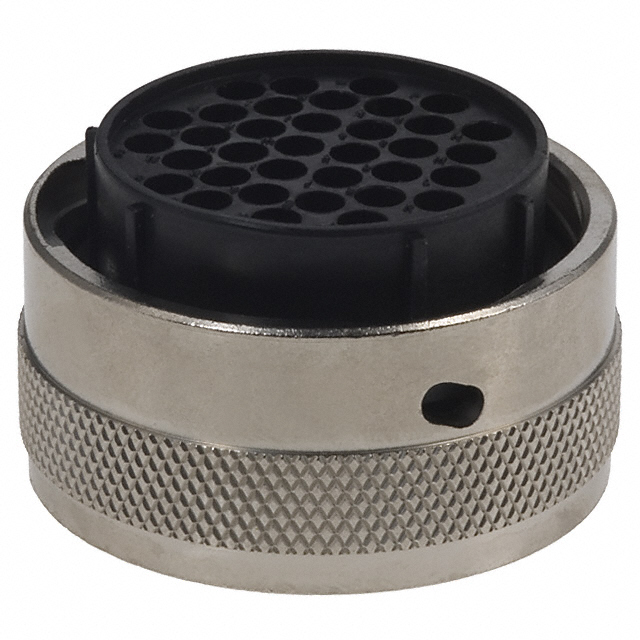

UTG622-35SN

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 35POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UTG622-35SN

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 35POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG622-35SN

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	35
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	22
Shielding	Unshielded
Type	For Female Sockets

UTG62 Series

Part	Shell Finish	Number of Positions	Features	Shell Material	Contact Shape	Fastening Type	Contact Type	Shielding	Note	Type	Material Flammability Rating	Insert Material	Orientation	Shell Size - Insert	Contact Size	Mounting Type	Housing Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Contact Size	Contact Size	Number of Positions [custom]	For Use With/Related Products	Accessory Type	Material	Color	Shell Size - Insert	Number of Positions [custom]
Souriau-Sunbank by Eaton UTG62411SN	Nickel	11	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Female Sockets	UL94 V-0	Thermoplastic Glass Filled	N	24-11	16 (7) 8 (4)	Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C
Souriau-Sunbank by Eaton UTG620-28PN	Nickel	28	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Male Pins	UL94 V-0	Thermoplastic Glass Filled	N			Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C	28	20	16
Souriau-Sunbank by Eaton UTG6247PN	Nickel	8 9	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Male Pins	UL94 V-0	Thermoplastic Glass Filled	N	24-7		Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C				8	16	PE
Souriau-Sunbank by Eaton UTG624-48PN	Nickel	48	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Male Pins	UL94 V-0	Thermoplastic Glass Filled	N			Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C	48	24	16
Souriau-Sunbank by Eaton UTG622-35SN	Nickel	35	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Female Sockets	UL94 V-0	Thermoplastic Glass Filled	N			Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C	35	22	16
Souriau-Sunbank by Eaton UTG622DCG			Dust Tight Metal Chain Waterproof																								Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Plugs	Cap (Cover) Dust	Plastic	Black	22
Souriau-Sunbank by Eaton UTG62448SN	Nickel	48	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Female Sockets	UL94 V-0	Thermoplastic Glass Filled	N			Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C	48	24	16
Souriau-Sunbank by Eaton UTG6247SN	Nickel	8 9	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Female Sockets	UL94 V-0	Thermoplastic Glass Filled	N	24-7		Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C				8	16	PE
Souriau-Sunbank by Eaton UTG62020SN	Nickel		Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Female Sockets	UL94 V-0	Thermoplastic Glass Filled	N			Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C	20	20	16			PE						19 20
Souriau-Sunbank by Eaton UTG622-35PN	Nickel	35	Coupling Nut	Brass	Circular	Bayonet Lock	Crimp	Unshielded	Contacts Not Included	For Male Pins	UL94 V-0	Thermoplastic Glass Filled	N			Free Hanging (In-Line)	Silver	Plug Housing	-55 °C	125 °C	35	22	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.58
		10	$ 18.90
		25	$ 18.08
		50	$ 17.50
		100	$ 16.91
		250	$ 15.98
		500	$ 15.52

Description

General part information

UTG62 Series

35 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
