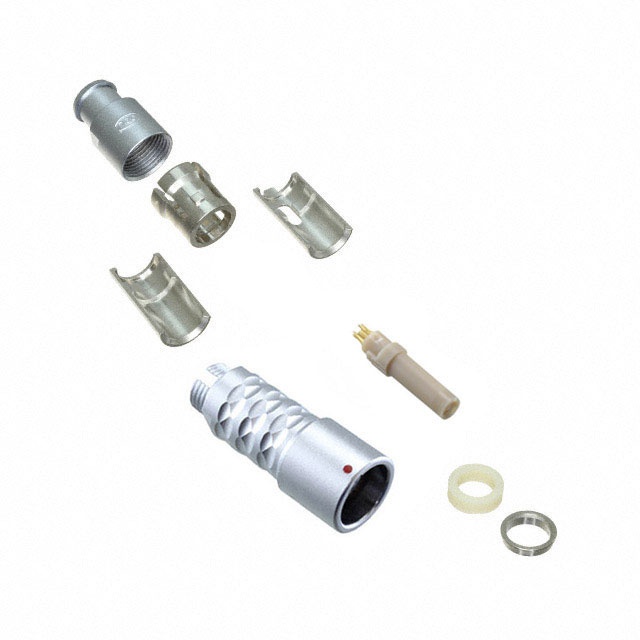

K20K0C-P03LJG0-400S
ActiveODU
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
K20K0C-P03LJG0-400S
ActiveODU
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K20K0C-P03LJG0-400S |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Cable Opening [Max] [diameter] | 0.157 in |
| Cable Opening [Max] [diameter] | 4 mm |
| Cable Opening [Min] [diameter] | 0.138 in |
| Cable Opening [Min] [diameter] | 3.5 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 0 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
K20K0C-P Series
| Part | Insert Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Shell Finish | Primary Material | Fastening Type | Contact Material | Mounting Type | Orientation | Contact Finish - Mating | Features | Backshell Material, Plating | Current Rating (Amps) | Color | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Number of Positions | Applications | Ingress Protection | Connector Type | Shielding | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | 0.118 in | 0.098 in | 3 mm | 2.5 mm | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 7.5 A | Silver | Brass | -40 °C | 120 °C | 0 | 2 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | |||||||
Polyetheretherketone (PEEK) | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 7 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | 0.098 in | 2 mm | 0.079 in | 2.5 mm | |||||||
Polyetheretherketone (PEEK) | 0.138 in | 0.118 in | 3 mm | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 7 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | 3.5 mm | ||||||||
Polyetheretherketone (PEEK) | 0.118 in | 0.098 in | 3 mm | 2.5 mm | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 7 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | |||||||
Polyetheretherketone (PEEK) | 0.118 in | 0.098 in | 3 mm | 2.5 mm | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 7.5 A | Silver | Brass | -40 °C | 120 °C | 0 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | ||||||||
Polyetheretherketone (PEEK) | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 6 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | 0.098 in | 2 mm | 0.079 in | 2.5 mm | |||||||
Polyetheretherketone (PEEK) | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 7 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | 0.177 in | 4 mm | 0.157 in | 4.5 mm | ||||||||
Polyetheretherketone (PEEK) | 0.138 in | 0.118 in | 3 mm | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 6 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | 3.5 mm | |||||||
Polyetheretherketone (PEEK) | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 4 A | Silver | Brass | -40 °C | 120 °C | 0 | 9 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Shielded | 0.079 in | 1.5 mm | 0.059 in | 2 mm | |||||||
Polyetheretherketone (PEEK) | 0.157 in | 0.138 in | 3.5 mm | Chrome over Nickel | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0 | Gold | Backshell Strain Relief | Brass Chrome over Nickel | 7.5 A | Silver | Brass | -40 °C | 120 °C | 0 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.67 | |
| 10 | $ 40.02 | |||
| 25 | $ 36.32 | |||
| 50 | $ 33.83 | |||
| 100 | $ 31.57 | |||
| 250 | $ 28.91 | |||
Description
General part information
K20K0C-P Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
