CS47L85-CWZR
ObsoleteCirrus Logic Inc.
IC - LOW PWR AUDIO DSP FOR SMART
CS47L85-CWZR
ObsoleteCirrus Logic Inc.
IC - LOW PWR AUDIO DSP FOR SMART
Description
General part information
CS47L85 Series
IC - LOW PWR AUDIO DSP FOR SMART
Technical Specifications
Parameters and characteristics for this part
| Specification | CS47L85-CWZR |
|---|---|
| Clock Rate (MIPS) | 900 MIPS |
| Interface | SLIMbus, SPI, I2C |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

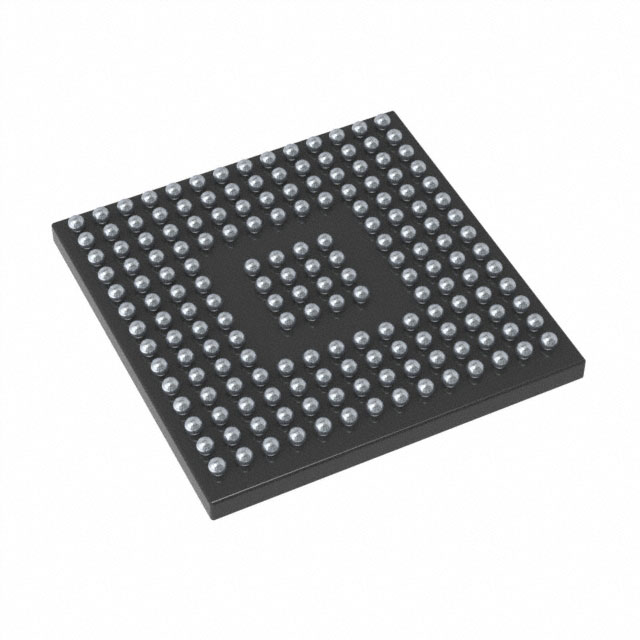

| Package / Case | 176-UFBGA, WLCSP |
| Package Length | 5.86 mm |
| Package Name | 176-WCSP |
| Package Width | 5.96 mm |
| Type | Audio Codec |
| Voltage - Core | 1.2 V |
| Voltage - I/O (Option 1) | 1.2 V |
| Voltage - I/O (Option 2) | 1.8 V |
| Voltage - I/O (Option 3) | 3.6 V |
