5500F1 0081000

Active

Belden Inc.

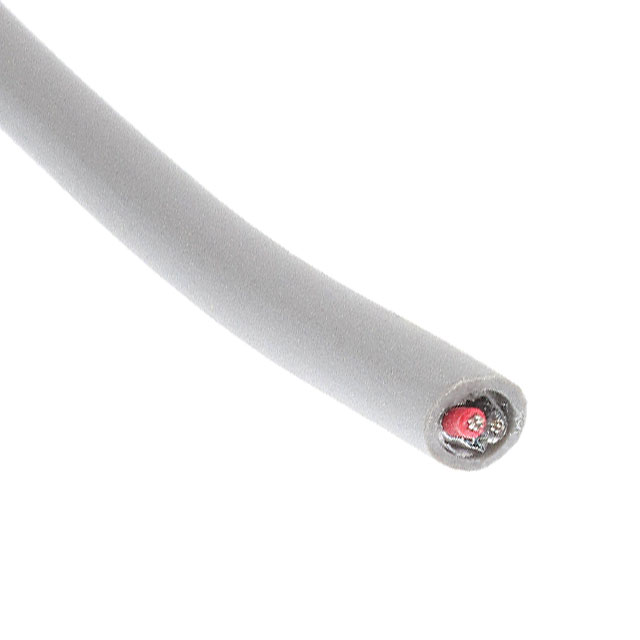

CABLE 2CON 22AWG GRAY SHLD 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 22AWG GRAY SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	5500F1 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.98 mm
Jacket (Insulation) Diameter [diameter]	0.196 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security, Alarm
Wire Gauge	22 AWG

Part	Shield Type	Features	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Cable Type	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Material	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 5500F1 0081000	Foil	Drain Wire Rip Cord	Aluminum	0.025 in	0.635 mm	Gray	Multi-Conductor	100 %	4.98 mm	0.196 in	Poly-Vinyl Chloride (PVC)	Copper Tinned	Alarm Security Sound	-20 C	105 ░C	2	Poly-Vinyl Chloride (PVC)	22 AWG	7	30 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 22 AWG Foil 1000.0' (304.8m)
