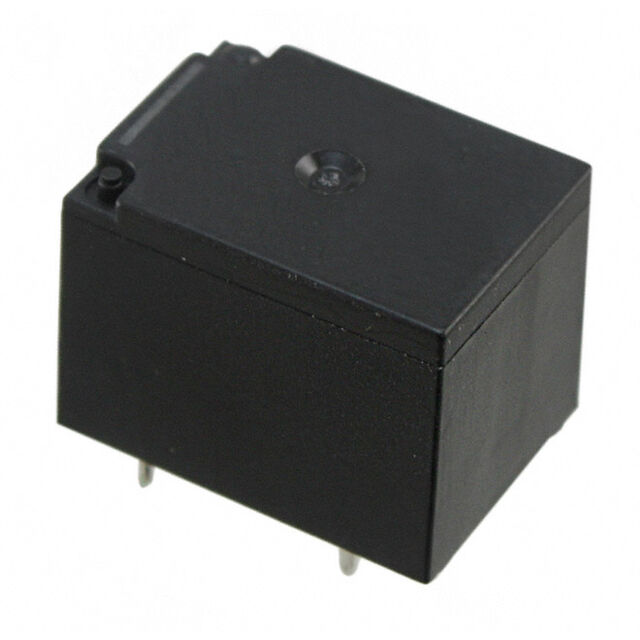

JS1-F-18V-F
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 18V
Deep-Dive with AI
Search across all available documentation for this part.
JS1-F-18V-F
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 18V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JS1-F-18V-F |
|---|---|
| Approval Agency | TUV, VDE, CSA, UR |
| Coil Current | 20 mA |
| Coil Insulation | Class F |
| Coil Resistance | 900 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 18 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 1000 W, 2500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 12.6 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JS1-F-1 Series
General Purpose Relay SPDT (1 Form C) 18VDC Coil Through Hole
