UFT10020

Obsolete

GeneSiC Semiconductor

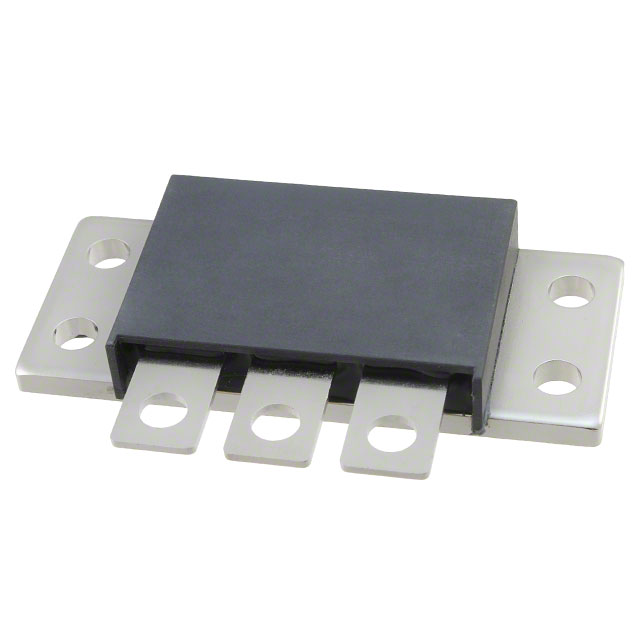

DIODE MODULE GP 200V 50A TO249AB

Search across all available documentation for this part.

Obsolete

GeneSiC Semiconductor

DIODE MODULE GP 200V 50A TO249AB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 200 V 50A Chassis Mount TO-249AB

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UFT10020	UFT100 Series

Current - Average Rectified (Io) (per Diode)	50 A	50 A
Current - Reverse Leakage @ Vr	25 µA	25 µA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	TO-249AB	TO-249AB
Reverse Recovery Time (trr)	60 ns	60 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-249AB	TO-249AB
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	50 - 200 V
Voltage - Forward (Vf) (Max) @ If [Max]	1 V	1 V

DIODE MODULE GP 100V 50A TO249AB

Part	Diode Configuration	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Speed	Package / Case	Mounting Type
GeneSiC Semiconductor UFT10010	1 Pair Common Cathode	1 V	60 ns	50 A	150 °C	-55 °C	100 V	TO-249AB	Standard	25 µA	200 mA, 500 ns	TO-249AB	Chassis Mount
GeneSiC Semiconductor UFT10005	1 Pair Common Cathode	1 V	60 ns	50 A	150 °C	-55 °C	50 V	TO-249AB	Standard		200 mA, 500 ns	TO-249AB	Chassis Mount
GeneSiC Semiconductor UFT10020	1 Pair Common Cathode	1 V	60 ns	50 A	150 °C	-55 °C	200 V	TO-249AB	Standard	25 µA	200 mA, 500 ns	TO-249AB	Chassis Mount
