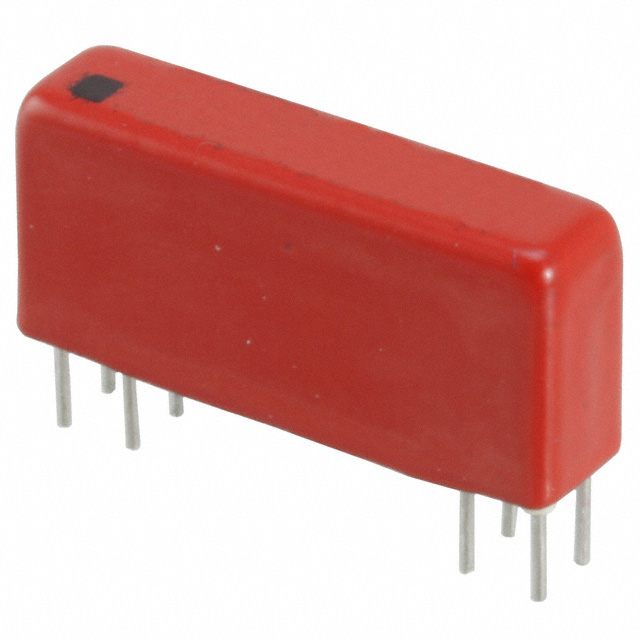

2377-12-020

Active

Coto Technology

RELAY REED DPST 500MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED DPST 500MA 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED DPST 500MA 12V

Part	Switching Voltage	Mounting Type	Coil Type	Release Time	Contact Rating (Current)	Must Operate Voltage	Operate Time	Coil Voltage	Must Release Voltage	Seal Rating	Coil Current	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Resistance
Coto Technology 2377-12-020	200 VDC, 200 VAC	Through Hole	Non Latching	0.15 ms	0.5 A	6.7 VDC	500 µs	12 VDC	1 VDC	Sealed - Hermetically	24 mA	DPST-NO (2 Form A)	125 °C	-40 °C	PC Pin	500 Ohms
Coto Technology 2377-05-020	200 VDC, 200 VAC	Through Hole	Non Latching	0.15 ms	0.5 A	2.5 VDC	500 µs	5 VDC	0.4 VDC	Sealed - Hermetically		DPST-NO (2 Form A)	125 °C	-40 °C	PC Pin	90 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED DPST 500MA 12V
