PT5S8LC4 - 141507x-1

PT5S8LC4

Active
TE Connectivity Potter & Brumfield Relays

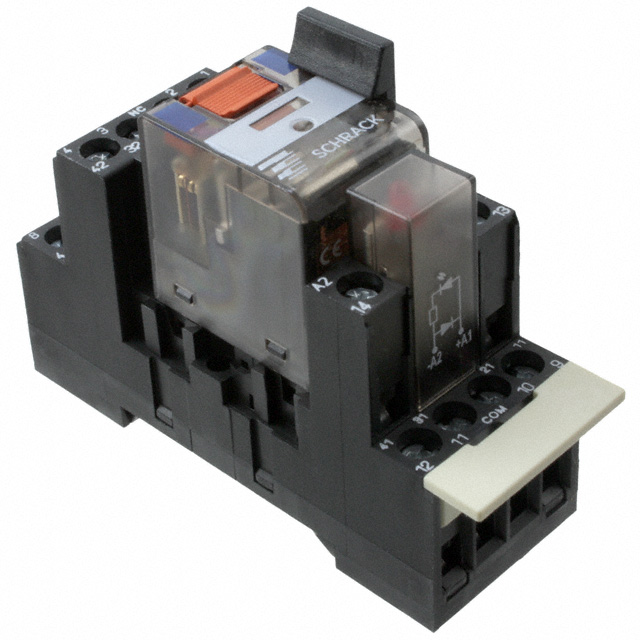

RELAY GEN PURPOSE 4PDT 6A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
PT5S8LC4 - 141507x-1

PT5S8LC4

Active
TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 6A 24V

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationPT5S8LC4
Approval AgencycURus, VDE
Coil Current30.8 mA
Coil InsulationClass F
Coil Resistance777 Ohms
Coil TypeNon Latching
Coil Voltage24 VDC
Contact Form4PDT (4 Form C)
Contact MaterialSilver Nickel (AgNi), Gold (Au)
Contact Rating (Current)6 A
FeaturesDiode, Test Button, Lighted Indicator, Socket Included, Mechanical Indicator
Load - Max Switching1440 VA
Mounting TypeDIN Rail
Must Operate Voltage18 VDC
Must Release Voltage2.4 VDC
Operate Time15 ms
Operating Temperature [Max]70 °C
Operating Temperature [Min]-40 °C
Relay TypeGeneral Purpose
Release Time18 ms
Switching Voltage240 VAC
Termination StyleScrew Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 27.14
10$ 25.79
25$ 24.43
50$ 23.89

Description

General part information

PT5S8 Series

General Purpose Relay 4PDT (4 Form C) 24VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Datasheet
