LPF-60-36

Active

MEAN WELL USA Inc.

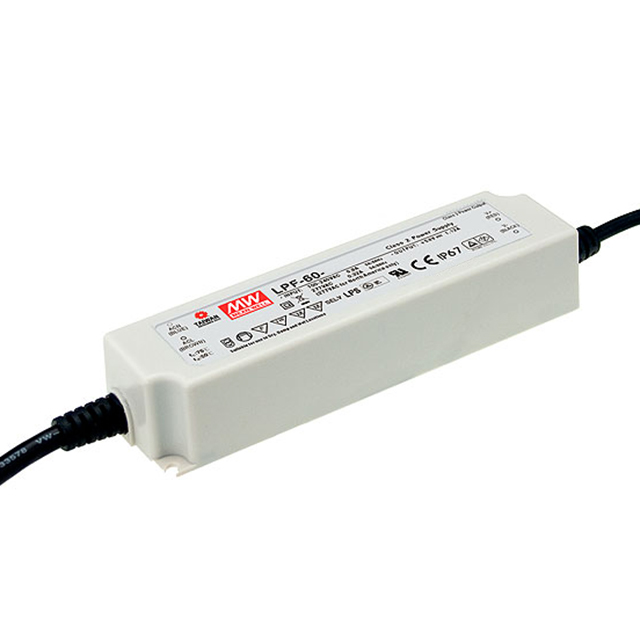

LED DVR CCCV ACDC 21.6-36V 1.67A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPF-60-36

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 21.6-36V 1.67A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPF-60-36

Approval Agency	cURus, PSE, CB, CCC, ENEC, TUV, CE
Current - Output (Max) [Max]	1.67 A
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	60 W
Ratings	IP67
Size / Dimension [x]	6.4 in
Size / Dimension [x]	162.5 mm
Size / Dimension [y]	1.69 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	36 V
Voltage - Output [Min]	21.6 V

LPF-60 Series

Part	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Mounting Type	Voltage - Isolation	Topology	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Termination Style	Approval Agency	Efficiency	Voltage - Input (Min) [Min]	Features	Power (Watts)	Type	Number of Outputs	Voltage - Input (Max) [Max]	Ratings	Current - Output (Max) [Max]
MEAN WELL USA Inc. LPF-60D-36	Analog PWM	-40 °C	80 C	21.6 V	36 V	Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current	1	305 VAC	IP67	1.67 A
MEAN WELL USA Inc. LPF-60-36		-40 °C	80 C	21.6 V	36 V	Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current Voltage	1	305 VAC	IP67	1.67 A
MEAN WELL USA Inc. LPF-60-54		-40 °C	80 C	32.4 V	54 V	Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE PSE TUV UR	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current Voltage	1	305 VAC	IP67	1.12 A
MEAN WELL USA Inc. LPF-60-12		-40 °C	80 C	7.2 V	12 V	Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	86 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current Voltage	1	305 VAC	IP67	5 A
MEAN WELL USA Inc. LPF-60-30		-40 °C	80 C			Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current Voltage	1	305 VAC	IP67	2 A
MEAN WELL USA Inc. LPF-60D-15	Analog PWM	-40 °C	80 C			Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	87 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current	1	305 VAC	IP67	4 A
MEAN WELL USA Inc. LPF-60D-42	Analog PWM	-40 °C	80 C	25.2 V	42 V	Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current	1	305 VAC	IP67	1.43 A
MEAN WELL USA Inc. LPF-60D-30	Analog PWM	-40 °C	80 C			Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current	1	305 VAC	IP67	2 A
MEAN WELL USA Inc. LPF-60D-48	Analog PWM	-40 °C	80 C	28.8 V	48 V	Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE PSE TUV UR	90 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current	1	305 VAC	IP67	1.25 A
MEAN WELL USA Inc. LPF-60-15		-40 °C	80 C			Chassis Mount	3750 V	AC DC Converter	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	Wire Leads	CB CCC CE cURus ENEC PSE TUV	87 %	90 VAC	OCP OTP OVP SCP	60 W	Constant Current Voltage	1	305 VAC	IP67	4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.63
		5	$ 30.75
		10	$ 29.58
		25	$ 28.11

Description

General part information

LPF-60 Series

1.67A 21.6 ~ 36V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
