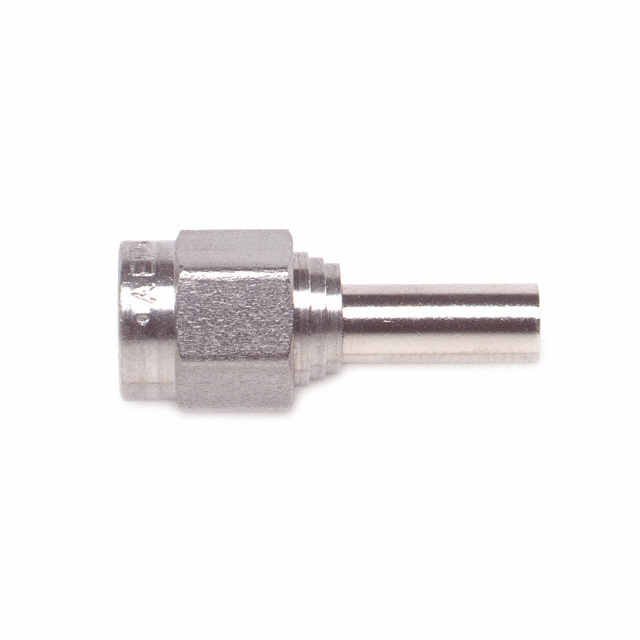

Specification	4804

Body Material	Brass
Cable Group	179, 187, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Housing Color	Silver
Impedance	50 Ohm
Includes	Connector, Ferrule, Heat Shrink, Contact
Includes Total Count	4 pcs
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

- Series

...

Part	Fastening Type	Housing Color	Contact Termination	Number of Ports	Shield Termination	Mounting Feature	Center Contact Material	Connector Style	Impedance	Mounting Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Center Contact Plating	Body Material	Body Finish	Includes Total Count	Includes	Convert From (Adapter End)	Adapter Series	Center Gender	Frequency - Max	Conversion Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Style	Adapter Type	Mating Cycles	Cable Group	Voltage Rating	Termination	Shell Size - Insert	Contact Finish - Mating	Features	Primary Material	Shell Finish	Color	Orientation	Shell Material	Number of Positions	Convert To (Adapter End) Count	Convert To (Adapter End)
Pomona Electronics 3580	Bayonet Lock	Silver	Solder Cup	1	Solder	Bulkhead Front Side Nut	Beryllium Copper	BNC Triaxial	50 Ohm	Panel Mount	Female Socket Recepture	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Nickel	3 pcs	Connector Lockwasher Nut
Pomona Electronics 72964	Threaded						Brass		50 Ohm	Free Hanging (In-Line)		-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Gold			Male Pin SMA Plug	SMA to SMA	Male	6000 MHz	Same Series	SMA Plug	Male Pin	Straight	Plug to Plug	500 cycles
Pomona Electronics 73012	Snap-On	Gold	Push On	1	Crimp		Beryllium Copper	MCX	75 Ohm	Free Hanging (In-Line)	Female Socket Jack	-55 °C	155 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Gold	3 pcs	Connector Ferrule Heat Shrink				2 GHz						500 cycles	RG-179	170 V
Pomona Electronics 72946	Threaded	Gold	Crimp Solder	1	Crimp		Brass	SMA	50 Ohm	Free Hanging (In-Line)	Male Pin Plug	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Gold	3 pcs	Connector Contact Ferrule				12.4 GHz						500 cycles	187 316 RG-174	375 V
Pomona Electronics 6851	Latch Lock									Free Hanging (In-Line)	Male Pins Plug																					Solder	XLR	Gold	Cable Clamp	Metal	Nickel	Black	Keyed	Zinc Die Cast	3
Pomona Electronics 6738	Bayonet Lock						Beryllium Copper		75 Ohm	Free Hanging (In-Line)		-65 °C	155 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Nickel			BNC Jack Female Socket	BNC to BNC Dual	Female	3 GHz	Same Series			T-Shape	Jack to Jack	500 cycles													2 count	BNC Jack Female Socket
Pomona Electronics 73053	Threaded						Brass Phosphor Bronze		50 Ohm	Free Hanging (In-Line) Right Angle				Polytetrafluoroethylene (PTFE)	Gold	Brass	Nickel			Male Pin TNC Plug	TNC to TNC	Female Male	4 GHz	Same Series			Right Angle	Plug to Jack	500 cycles														Female Socket TNC Jack
Pomona Electronics 73062	Threaded	Silver	Crimp	1	Clamp		Brass	N Type	50 Ohm	Free Hanging (In-Line)	Male Pin Plug			Polytetrafluoroethylene (PTFE)	Gold	Brass	Nickel	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer				11 GHz						500 cycles	144 165 213 214 216 225 9 RG-8	1000 V
Pomona Electronics 4787	Threaded	Silver	Solder	1	Clamp		Brass	N Type	50 Ohm	Free Hanging (In-Line)	Male Pin Plug			Polytetrafluoroethylene (PTFE)	Gold	Brass		6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer											141 142 223 RG-58
Pomona Electronics 72998	Snap-On	Gold	Solder	1	Solder		Beryllium Copper	SMB	50 Ohm	Right Angle Through Hole	Male Pin Receptacle	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Gold						3 GHz						500 cycles		250 V
