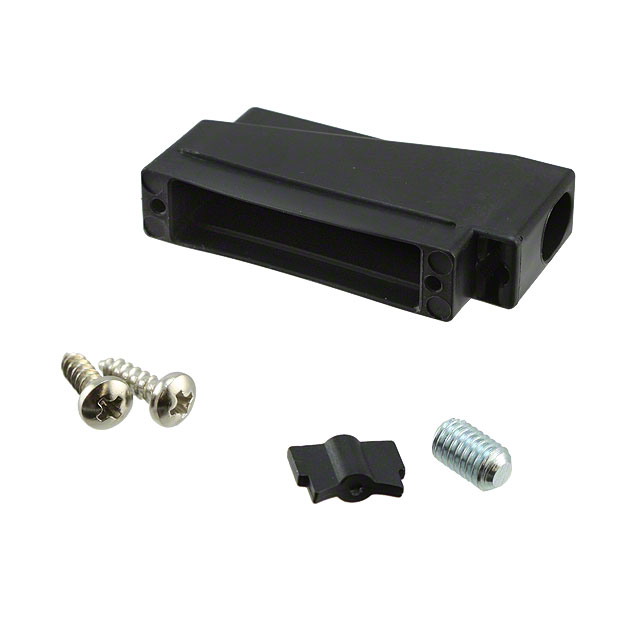

165X10459XE

Active

Amphenol CONEC

CONN BACKSHELL 25POS 90DEG BLACK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 25POS 90DEG BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Compatible D-Sub Size	Compatible Shell Size	Features	Cable Exit	Primary Material	Accessory Type	Hardware	Color	Cable Type	Number of Positions	Material
Amphenol CONEC 165X10459X	Unshielded	25pos HD44pos	B	Mating Screws	90 °	Plastic	One Piece Backshell	Strain Relief	Black	Round
Amphenol CONEC 165X10459XE	Unshielded	25pos HD44pos	B	Mating Screws	90 °	Plastic	One Piece Backshell	Strain Relief	Black	Round
Amphenol CONEC 165X10419X	Unshielded	37pos HD62pos	C	Mating Screws	180 °	Plastic	One Piece Backshell	Strain Relief	Black	Round	37
Amphenol CONEC 165X10419XE	Unshielded	37pos HD62pos	C	Mating Screws	180 °	Plastic	One Piece Backshell	Strain Relief	Black	Round	37
Amphenol CONEC 165X10469X	Unshielded	37pos HD62pos	C	Mating Screws	90 °	Plastic	One Piece Backshell	Strain Relief	Black	Round	37
Amphenol CONEC 165X10449XE	Unshielded	15pos HD26pos	A	Mating Screws	90 °	Plastic	One Piece Backshell	Strain Relief	Black	Round	15
Amphenol CONEC 165X10409XE	Unshielded	25pos HD44pos	B	Mating Screws	180 °	Plastic	One Piece Backshell	Strain Relief	Black	Round
Amphenol CONEC 165X10409X	Unshielded	25pos HD44pos	B	Mating Screws	180 °	Plastic	One Piece Backshell	Strain Relief	Black	Round
Amphenol CONEC 165X10499X	Unshielded	15pos HD26pos	A	Mating Screws 4-40	45 ° 180 °	Plastic	One Piece Backshell	Strain Relief	Black	Round	15	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 165X10469XE	Unshielded	37pos HD62pos	C	Mating Screws	90 °	Plastic	One Piece Backshell	Strain Relief	Black	Round	37

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position One Piece Backshell Connector Black 90° Unshielded

Technical documentation and resources

No documents available
