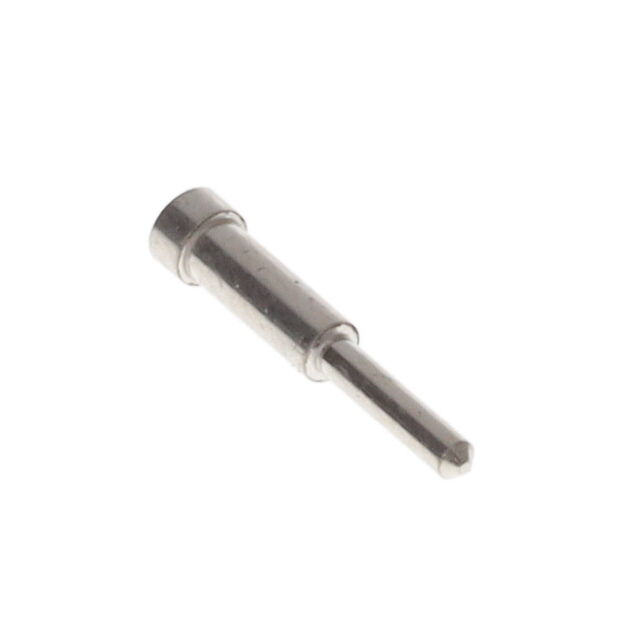

0300-2-15-01-47-01-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .025-.037 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPin Receptacles (metric) ~

0300-2-15-01-47-01-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .025-.037 SOLDER

Deep-Dive with AI

DocumentsPin Receptacles (metric) ~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0300-2-15-01-47-01-10-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.078 in
Flange Diameter [diameter]	1.98 mm
Length - Overall [x]	10.08 mm
Length - Overall [x]	0.397 "
Mounting Hole Diameter [diameter]	0.042 in
Mounting Hole Diameter [diameter]	1.07 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	4.57 mm
Socket Depth	0.18 in
Tail Diameter	1.02 mm
Tail Diameter [diameter]	0.04 "
Tail Type	Standard Tail
Termination	Solder

0300-2 Series

Part	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Tail Diameter [diameter]	Tail Diameter	Socket Depth	Socket Depth	Contact Material	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0300-2-15-80-47-80-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Tin	10.08 mm	0.397 "	200 Áin	5.08 Ám	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0300-2-15-15-47-14-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Gold	10.08 mm	0.397 "	10 Áin	0.25 Ám	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0300-2-15-01-47-01-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Tin-Lead	10.08 mm	0.397 "	200 Áin	5.08 Ám	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0300-2-15-01-47-27-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Gold	10.08 mm	0.397 "	30 Áin	0.76 Ám	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0300-2-15-80-47-27-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Gold	10.08 mm	0.397 "	30 Áin	0.76 Ám	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0300-2-15-15-47-27-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Gold	10.08 mm	0.397 "	30 Áin	0.76 Ám	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0300-2-15-80-47-14-10-0	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	-55 °C	125 °C	0.042 in	1.07 mm	0.051 in	1.3 mm	Solder	0.04 "	1.02 mm	4.57 mm	0.18 in	Beryllium Copper	0.64 mm	0.025 in	Gold	10.08 mm	0.397 "	10 Áin	0.25 Ám	0.078 in	1.98 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.53
		10	$ 1.17
		25	$ 1.05
		50	$ 0.97
		100	$ 0.90
		250	$ 0.81
		500	$ 0.75
		1000	$ 0.70
		2500	$ 0.64

Description

General part information

0300-2 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Solder
