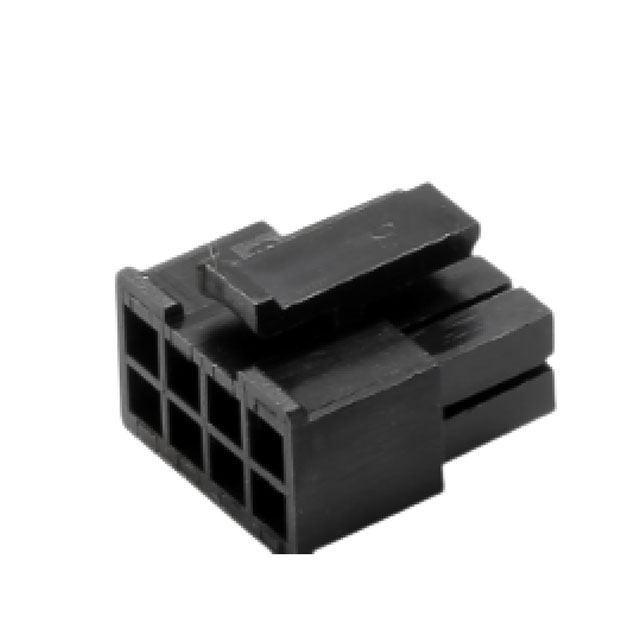

A-WBH-O001DG-24CB01

Active

Assmann WSW Components

WIRE-TO-BOARD, HOUSING, 3.00MM,

Search across all available documentation for this part.

Active

Assmann WSW Components

WIRE-TO-BOARD, HOUSING, 3.00MM,

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Row Spacing [x]	Row Spacing [x]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Insulation Material	Connector Type	Contact Type	Color	Mounting Type	Number of Rows	Fastening Type	Contact Termination
Assmann WSW Components A-WBH-O001DG-24CB01	24	0.118 in	3 mm	-25 °C	85 °C	3 mm	0.118 in	Polyamide (PA66) Nylon 6/6	Plug	Female Socket	Black	Free Hanging (In-Line)	2	Latch Lock	Crimp
Assmann WSW Components A-WBH-O001DG-20CB01	20	0.118 in	3 mm	-25 °C	85 °C	3 mm	0.118 in	Polyamide (PA66) Nylon 6/6	Plug	Female Socket	Black	Free Hanging (In-Line)	2	Latch Lock	Crimp
Assmann WSW Components A-WBH-O001DG-04CB01	4	0.118 in	3 mm	-25 °C	85 °C	3 mm	0.118 in	Polyamide (PA66) Nylon 6/6	Plug	Female Socket	Black	Free Hanging (In-Line)	2	Latch Lock	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2000	$ 1.32

General part information

24 Rectangular Connectors - Housings Plug Black 0.118" (3.00mm)
