Q-200420003036i

Active

Amphenol Custom Cable

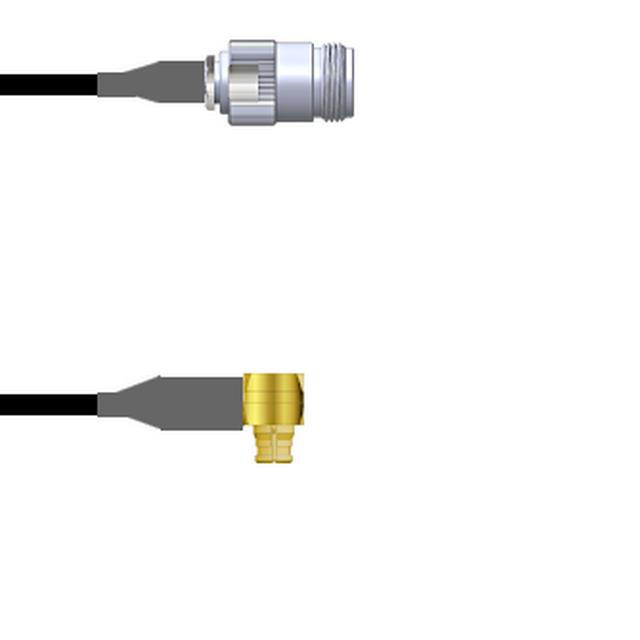

CBL ASSY SMP-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-200420003036i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-200420003036i

1st Connector	SMP Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-200420 Series

Part	Overall Impedance	Features	2nd Connector Mounting Type	Style	1st Connector Mounting Type	1st Connector	Length	Length	Cable Type	2nd Connector	Frequency - Max [Max]	2nd Contact Gender	1st Contact Gender	Color	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-200420005.75M	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	29.53 "	750 mm	RG-316	N-Type Jack	11 GHz	Female	Male	Copper
Amphenol Custom Cable Q-200420005018i	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle			RG-316	N-Type Jack	11 GHz	Female	Male	Copper	457.2 mm	457.2 mm
Amphenol Custom Cable Q-200420005002M	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	78.7 in	2 m	RG-316	N-Type Jack	11 GHz	Female	Male	Copper			6.6 ft
Amphenol Custom Cable Q-200420005108i	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	108 in	2.7 m	RG-316	N-Type Jack	11 GHz	Female	Male	Copper			9 ft
Amphenol Custom Cable Q-200420003.25M	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle			RG-174	N-Type Jack	11 GHz	Female	Male	Black		250 mm		9.843 "
Amphenol Custom Cable Q-200420005012i	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	12 "	304.8 mm	RG-316	N-Type Jack	11 GHz	Female	Male	Copper
Amphenol Custom Cable Q-200420003072i	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	72 in	1.8 m	RG-174	N-Type Jack	11 GHz	Female	Male	Black			6 ft
Amphenol Custom Cable Q-200420003036i	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	36 in	91.44 cm	RG-174	N-Type Jack	11 GHz	Female	Male	Black
Amphenol Custom Cable Q-200420005009i	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	9 "	228.6 mm	RG-316	N-Type Jack	11 GHz	Female	Male	Copper
Amphenol Custom Cable Q-2004200052.5M	50 Ohms	Shielded	Free Hanging (In-Line)	SMP to N-Type	Free Hanging (In-Line)	SMP Plug Right Angle	98.4 in	2.5 m	RG-316	N-Type Jack	11 GHz	Female	Male	Copper			8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.07
		25	$ 77.53
		50	$ 75.98
		100	$ 74.44
		250	$ 72.90

Description

General part information

Q-200420 Series

Cable Assembly Coaxial SMP to N-Type RG-174 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
