881507-5

Active

TE Connectivity AMP Connectors

.110 FSTIN-ON REC.

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

.110 FSTIN-ON REC.

Technical Specifications

Parameters and characteristics for this part

Specification	881507-5

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	3.05 mm
Insulation Diameter [Max] [diameter]	0.12 in
Insulation Diameter [Min] [diameter]	0.08 in
Insulation Diameter [Min] [diameter]	2.03 mm
Length - Overall [x]	0.551 "
Length - Overall [x]	14 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	0.248 in
Tab Length	6.3 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	16 AWG

.110 FSTIN-ON REC.

Part	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Type	Insulation	Gender	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Tab Width	Tab Width	Tab Length	Tab Length	Terminal Type
TE Connectivity AMP Connectors 881507-5	Crimp	16 AWG	20 AWG	0.02 "	0.51 mm	0.551 "	14 mm	Free Hanging (In-Line)	Non-Insulated	Female	0.08 in	3.05 mm	0.12 in	2.03 mm	Brass	2.79 mm	0.11 "	0.248 in	6.3 mm	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

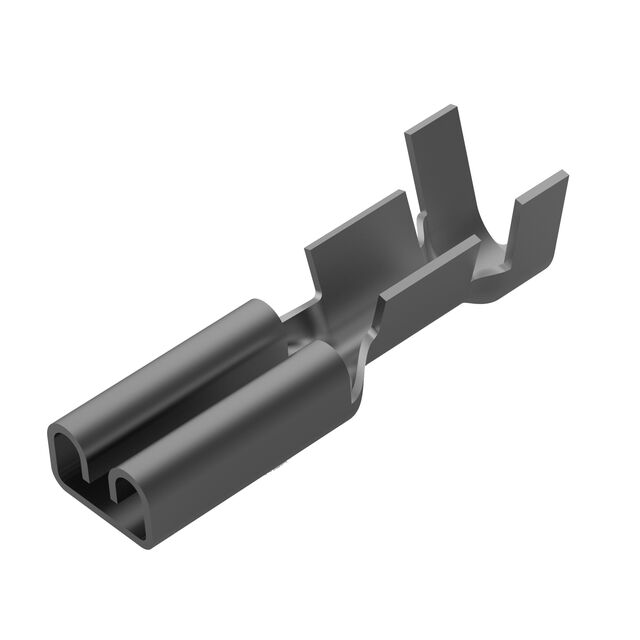

0.110" (2.79mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
